Bogen OPS1 6" Orbit Pendant Speaker 100W, 70V, White
Bogen OPS1 6" Orbit Pendant Speaker 100W, 70V, White
Bogen OPS1 6" Orbit Pendant Speaker 100W, 70V, White
OPS1W | BO-OPS1W
Please sign in to view pricing and availability and to add to cart.
Product Overview

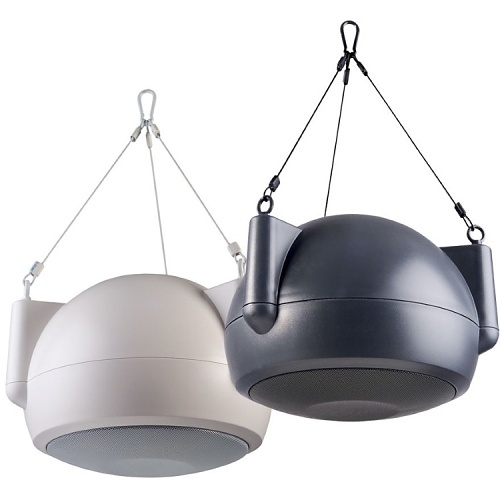

The Bogen Orbit Pendant speaker (OPS1) is the ideal choice for high ceiling and open space environments. The OPS1 features MLS and MDT technologies (see below), which improve sound quality and increase operating reliability. The low-distortion speaker design, featuring a spider-less driver and one-piece metal-alloy cone structure, delivers superb articulation and the highest intelligibility for both music and speech. The speakers consists of one 6-1/2" (nominal) low frequency transducer, and one 20mm (3/4") (nominal) high frequency transducer with a filter network for dividing frequencies between the transducers.
Main Features
- Wide dispersion coaxial driver for broad, even 140° coverage
- Stable, high definition metal-alloy cone
- MDT cone design delivers detailed sound
- MLS eliminates conventional centering “spider” for more accurate voice coil centering
- High-efficiency drivers deliver superior performance
- Extremely good off-axis response
- Computer-matched venting system for full bass output
- High power handling capability for foreground sound
- Selectable power taps via front-mounted control
- 16-ohm input for non-transformer multi-speaker systems
General Information
Specifications
ADI Part Number BO-OPS1W Brand Name Bogen Manufacturer Bogen Communications International, Inc Manufacturer Part Number OPS1W Product Model OPS1W Product Name Orbit OPS1 Pendant Speaker Product Series OPS Product Type Speaker Weight 10lb
Impedance 16 ohms Sensitivity 89.5dB Speaker Size 6.5"
Maximum Frequency Response 19 kHz Minimum Frequency Response 45Hz
Color White Depth 9.25" Durability Corrosion Resistant, Rigidity Resistant Form Factor Ceiling Mount Height 15" Material ABS Size 6.5" Width 15"
Limited Warranty 2-Year
Country of Origin CN Features Attractive, Computer-matched venting system, Contemporary, Extremely good off-axis response, High definition metal-alloy cone, High power handling capability, High-efficiency, Low-resonance cabinet structure, Stable, Sturdy steel grille, Wide-dispersion Package Contents - Orbit OPS1 Pendant Speaker
- 3 x Suspension Cables
- 3 x Forged Eye Bolts
- 3 x Nuts
- 1 x Quick Snap Clip
- 1 x Snap Lock Input Connector
