Bogen S86 Speaker 7 RMS
S86|BO-S86
Bogen S86 Speaker 7 RMS
S86|BO-S86
Bogen
Bogen S86 Speaker 7 RMS
S86 | BO-S86
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

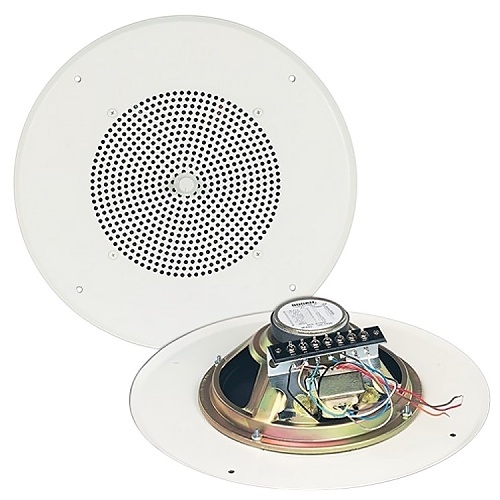

Bogen’s Ceiling Speaker Assemblies consist of an 8" Cone Speaker (S86 or S810) pre-assembled onto a 13" steel ceiling grille painted with off-white (PG8W) or bright white (PG8U) enamel. Options for these assemblies are recessed volume control (VR), volume control with knob (VK), and rear-mounted screw terminal strip for power taps (BR).
Main Features
- 4-watt capacity
- 8" cone speaker for excellent audio quality
- 6 different power taps available (4, 2, 1, 1/2, 1/4, 1/8 W)
- T725 4-watt transformer
- Off-white enamel over steel grille (“W” versions)
- Bright white enamel over steel grille (“U” versions)
- Pre-assembled for faster installation
- Works with both 70V and 25V amplifier outputs
- Available with volume control – recessed or with knob (VR and VK models only)
- 6 oz. or 10 oz. magnet weights
General Information
Name: Bogen S86 Speaker 7 RMS
Category: Bogen, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 765368480733
Country of Origin: CN. Country of origin is subject to change.
Specifications
ADI Part Number BO-S86 Brand Name Bogen Manufacturer Bogen Communications International, Inc Manufacturer Part Number S86 Product Model S86 Product Name S86 Speaker Product Series S86 Product Type Speaker
Impedance 8 ohms Sensitivity 95dB
Maximum Frequency Response 12 kHz Minimum Frequency Response 50Hz RMS Output Power 7W
Application/Usage Background Music, Paging, Security, Talkback Color White Form Factor Ceiling Mount
Limited Warranty 2-Year
TAA Compliant No
