Product Overview
The Bogen Models T725 and T72510 transformers are speaker-matching transformers that allow an 8-ohm speaker to be connected to 70V or 25V amplifier outputs. An 8-ohm secondary connects to the speaker and the multi-tap primary connects to the 70V or 25V amplifier output. The T725 can be tapped at 4, 2, 1, 1/2, 1/4, and 1/8 watts, while the T72510 can be tapped at 10, 5, 2-1/2, 1-1/4, and 5/8 watts. All wires are easily accessible. The unit's dimensions measure 2-1/2" W × 1-1/4" H × 1-3/8" D and it weighs approximately 6 oz.
Main Features
- Allows an 8-Ohms speaker to connect to 70V or 25V Alifier outputs
- T725 Power Taps: 4, 2, 1, 1/2, 1/4, 1/8W
- T72510 Power Taps: 10, 5, 2-1/2, 1-1/4, 5/8W
- Easily-accessed, stripped and tinned wire terminations
- Small, compact, and cost-effective

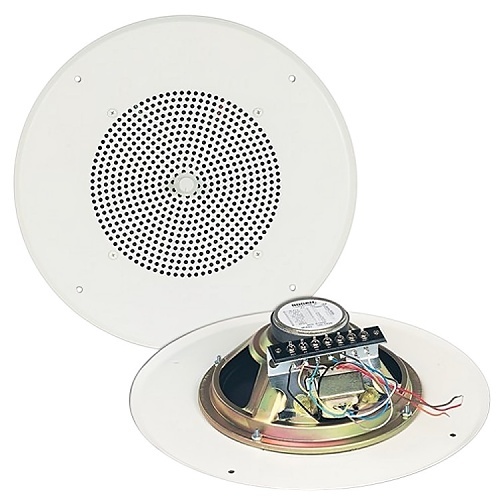

- Bright white enamel over steel grille (“U” versions)
- Pre-assembled for faster installation
- Works with both 70V and 25V amplifier outputs
- Available with volume control – recessed or with knob (VR and VK models only)
- 6 oz. or 10 oz. magnet weights
General Information
Name: Bogen T725 Speaker Matching Transformer
Category: Bogen, Batteries & Power Supplies, Pro AV, Power Supplies & Boards, Commercial Audio, Power Supplies, Pro Speakers
UPC Code: 765368481297
Country of Origin: CN. Country of origin is subject to change.
Specifications
ADI Part Number BO-T725 Brand Name Bogen Manufacturer Bogen Communications International, Inc Manufacturer Part Number T725 Product Model T725 Product Name T725 Step Down Transformer Product Series T725 Product Type Step Down Transformer Sector Professional AV
Color White Depth 1.4" Form Factor Ceiling Mount Height 1.3" Width 2.5"
Input Voltage 25V AC, 75V AC Power Rating 4VA
