Bogen TERRAIEX Penton 2-Channel Audio over IP Encoder/Decoder

Bogen TERRAIEX Penton 2-Channel Audio over IP Encoder/Decoder

Bogen TERRAIEX Penton 2-Channel Audio over IP Encoder/Decoder
TERRAIEX | BO-TERRAIEX
Please sign in to view pricing and availability and to add to cart.
Product Overview

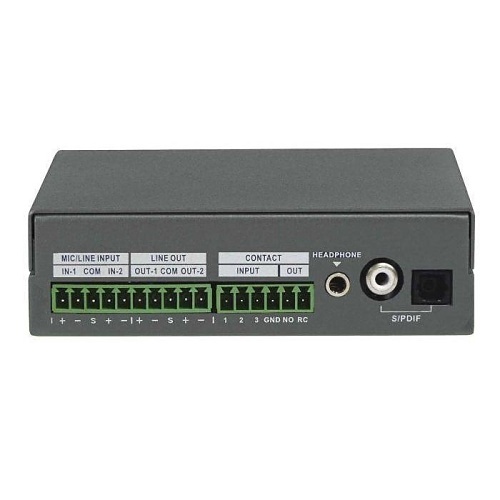

The TERRA-IEX is a 2-Channel audio over IP encoder/decoder. The balanced line input can be used as an audio source for your IP network, like a cd player or a sound card of a PC and be encoded in high quality MP3. A microphone can also be plugged on the mic input and be encoded in G.722. An optional S/PDIF input can also be used as a source. The TERRA-IEX streams its inputs in unicast or multicast. The same device provides also 2 independent balanced outputs for half duplex communication or for local outputs. By adding a USB memory stick, playlists can be used as a backup of the decoded stream or as a source for the IP streaming. The volume and the channel can be modified locally with an IR remote control or with a low-cost source selector, the RAC. Thanks to the analog inputs, powerful scenario can be implemented, like push buttons connected to the TERRA-IEX will send background music in predefined zones and another button will send the mic input for general announcement. At the same time a higher priority can be given to SIP emergency calls. Priority management, volume management, event management and scheduler are set up thanks to embedded webpages- an impressive audio over IP Terminal without direct need of a PC.
Main Features
- 2-Mic/line balanced inputs
- 2-Independent balanced line outputs
- 1-Headphone output on mini-jack
- 1-SPDIF Transceiver, Optional
- Audio inputs, maximum level + 5 dB, bandwidth 20 Hz - 20 kHz
General Information
Specifications
ADI Part Number BO-TERRAIEX Brand Name Bogen Manufacturer Bogen Communications International, Inc Manufacturer Part Number TERRAIEX Product Model TERRAIEX Product Name Bogen TERRAIEX IP-Media/Audio In/EX Streamers Product Type Audio encoder/decoder Weight 0.95lb
Depth 4.09" Height 1.25" Width 4.29"
