AVYCON AVN-S05-1P04W65G 5-Port 65W Gigabit PoE Switch
AVN-S05-1P04W65G|BX-AVNS051P4
AVYCON AVN-S05-1P04W65G 5-Port 65W Gigabit PoE Switch
AVN-S05-1P04W65G|BX-AVNS051P4
AVYCON
AVYCON AVN-S05-1P04W65G 5-Port 65W Gigabit PoE Switch
AVN-S05-1P04W65G | BX-AVNS051P4
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
DESCRIPTION

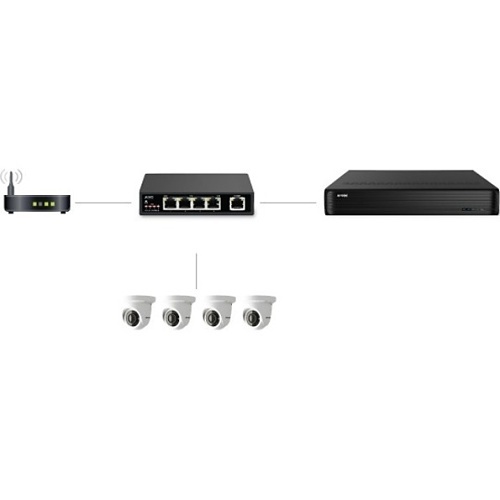

The AVN-S05-1P04W65G is compact 5 port Gigabit PoE/PoE+ switch, with all ports supporting 10/100/1000 Mbps Auto-negotiation and Auto-MDI/MDIX. The 4 PoE ports can automatically detect and provide power for any connected 802.3at/af Powered Device (PD), such as VOIP Phones, APs, IP Phones and IP Cameras. All PoE ports support the IEEE802.3af/IEEE802.3at standard, with a maximum output of 30W per each port and a total PoE budget of 58W.
FEATURES
- IEEE802.3af / IEE802.3at Compliant
- 5 x 10/100/1000 Base-TX Mbps Ports
- 4 x PoE / PoE+ ports, with each port supporting a 30W max. power output
- Total PoE budget of 58W
- Industrial rated power supply for increased stability
- 2K Entry MAC Address table with Auto-Learning and Auto-Aging
- High backplane bandwidth of 10Gbps
- IEEE802.3x Flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- Advanced surge protection for both power and data ports
- Compact and durable metal case for better reliability
- EMI standards complies with FCC, CE class B
Main Features
- Effectively increases available bandwidth on your network
General Information
Name: AVYCON AVN-S05-1P04W65G 5-Port 65W Gigabit PoE Switch
Category: AVYCON, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 655711439009
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number BX-AVNS051P4 Brand Name AVYCON Manufacturer AVYCON Manufacturer Part Number AVN-S05-1P04W65G Product Model AVN-S05-1P04W65G Product Name AVN-S05-1P04W65G 10/100/1000M 4+1 Port 65W Gigabit PoE/PoE+ Switch Product Type Ethernet Switch
Media Type Supported Twisted Pair
Network (RJ-45) Yes Total Number of Network Ports 5 Uplink Port Yes
Manageable No
Network Technology 10/100/1000Base-TX
Ethernet Technology Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Depth 3.3" Form Factor Rack Mount Height 1.1" Material Metal Width 5.1"
Frequency 50 Hz, 60 Hz PoE (RJ-45) Port Yes PoE Budget 58W Power Source Power Adapter, Power Supply
Package Contents - AVN-S05-1P04W65G 10/100/1000M 4+1 Port 65W Gigabit PoE/PoE+ Switch
- User Manual
- Power Adapter
- Power Cable
