Product Overview

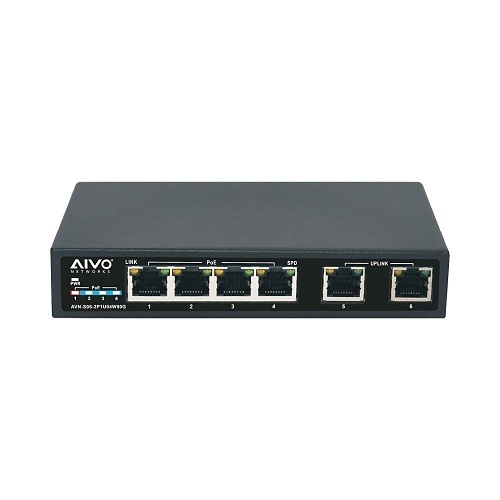

The AVN-S06-2P1U04W90G is a 6 Port Gigabit PoE switch. It provides 4 Gigabit PoE ports with Port 1 providing up to 60W and 2 Gigabit uplink ports. All 6 ports support auto MDI andMDIX functions. The PoE ports can automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered Devices (PDs), including VoIP phones, PoE APs, IP Phones, IP andNet-work Cameras, and other PoE devices.
Main Features
- IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at
- Provides 6 10/100/1000Base-Tx ports
- 4 PoE Ports (Ports 1-4), PoE Port 1 provides 60W max, Ports 2-4 provide 30W max. High back-plane bandwidth of 12Gbps
- 1K entry MAC Address Table with Auto-Learning and Auto-Aging.
- IEEE802.3xFlow control for Full-duplexMode and backpressure for Half-duplexMode
- Surge protection for power and data ports
- Supports PoE IEEE 802.3af or IEEE802.3at compliant Powered Device (PD)
- Compact metal case for desktop or wall-mounting.
- EMI standards comply with FCC, CE Class B
General Information
Name: AVYCON AVN-S06-2P1U04W90G 6-Port Managed L2+ Gigabit Switch
Category: AVYCON, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number BX-AVNS0690G Brand Name AVYCON Manufacturer AVYCON Manufacturer Part Number AVN-S06-2P1U04W90G Product Line AVN Product Model AVN-S06-2P1U04W90G Product Name Avycon AVN-S06-2P1U04W90G 4 Ports Gigabit PoE Switch with 1 Ultra PoE Port and 2G Uplink Ports, 90W Product Type Ethernet Switch Weight 4.4lb
Power Consumption 96W
Total Number of Network Ports 6 Uplink Port 2G
Depth 5.55" Height 2.51" Width 7.51"
Input Voltage 100-240V AC, 52V DC
Features 1K entry MAC Address Table with Auto-Learning and Auto-Aging, Compact metal case for desktop or wall-mounting, IEEE802.3x Flow control for Full-duplex Mode and backpressure for Half-duplex Mode, Supports PoE IEEE 802.3af or IEEE802.3at compliant Powered Device (PD), Surge protection for power and data ports
