AVYCON AVN-S09-1P08W135G 9-Port 135w Gigabit PoE Switch
AVN-S09-1P08W135G|BX-AVNS091P0
AVYCON AVN-S09-1P08W135G 9-Port 135w Gigabit PoE Switch
AVN-S09-1P08W135G|BX-AVNS091P0
AVYCON
AVYCON AVN-S09-1P08W135G 9-Port 135w Gigabit PoE Switch
AVN-S09-1P08W135G | BX-AVNS091P0
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
DESCRIPTION

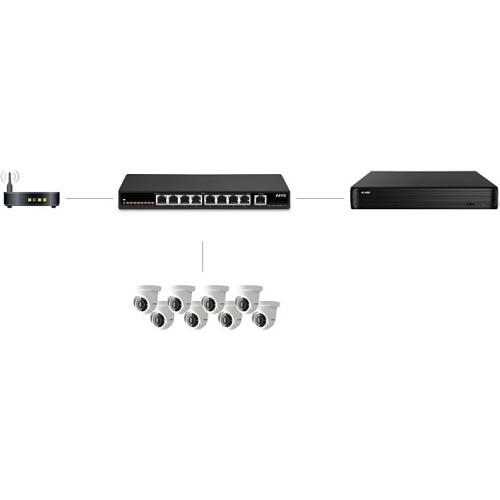

The AVN-S09-1P08W135G is compact 9 port Gigabit PoE/PoE+ switch, with all ports supporting 10/100/1000 Mbps auto-negotiation and Auto-MDI/MDIX. The 8 PoE ports can automatically detect and provide power for any connected 802.3at/af Powered Device (PD), such as VOIP Phones, APs, IP Phones and IP Cameras. All PoE ports support the IEEE802.3af/IEEE802.3at standard, with a maximum output of 30W per each port and a total PoE budget of 120W.
FEATURES
- IEEE802.3af / IEE802.3at Compliant
- 9 x 10/100/1000 Base-TX ports
- 8 x PoE / PoE+ ports, with each port supporting a 30W max. power output
- Total PoE budget of 120W
- Industrial rated power supply for increased stability
- 4K Entry MAC Address table with Auto-Learning and Auto-Aging
- High backplane bandwidth of 18Gbps
- IEEE802.3x Flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- Advanced surge protection for both power and data ports
- Compact and durable metal case for better reliability
- EMI standards complies with FCC, CE class B
Main Features
- Ethernet Switch provides dependable and powerful connectivity for maximum usability
General Information
Name: AVYCON AVN-S09-1P08W135G 9-Port 135w Gigabit PoE Switch
Category: AVYCON, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 655711438989
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number BX-AVNS091P0 Brand Name AVYCON Manufacturer AVYCON Manufacturer Part Number AVN-S09-1P08W135G Product Model AVN-S09-1P08W135G Product Name AVN-S09-1P08W135G 9 Port Network Switch with 8 PoE/PoE+ Gigabit Ports Product Type Ethernet Switch
Media Type Supported Twisted Pair
Network (RJ-45) Yes Total Number of Network Ports 9 Uplink Port Yes
Manageable No
Network Technology 10/100/1000Base-TX
Ethernet Technology Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Depth 4.1" Form Factor Rack Mount Height 1.1" Material Metal Width 8.6"
Frequency 50 Hz, 60 Hz PoE (RJ-45) Port Yes PoE Budget 120W Power Source Power Adapter, Power Supply
Package Contents - AVN-S09-1P08W135G 9 Port Network Switch with 8 PoE/PoE+ Gigabit Ports
- User Manual
- Power Adapter
- Power Cable
