Image of DF-139117U
Draper

Draper 139117U Access E, 137, 16:10 Format, Matte White

139117U|DF-139117U
Draper

Draper 139117U Access E, 137, 16:10 Format, Matte White

139117U|DF-139117U

Sign In for Dealer Pricing

Become an ADI Customer
Image of DF-139117U
Draper

Draper 139117U Access E, 137, 16:10 Format, Matte White

139117U | DF-139117U

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

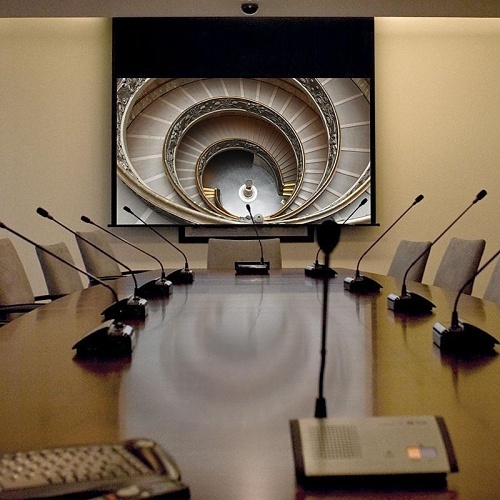

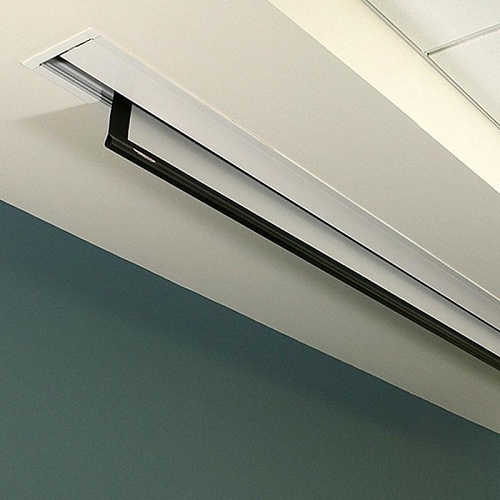

The ceiling-recessed Access E projection screen works well in universities, board rooms, training rooms, or home theaters. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Free-hanging screens maintain flatness due to the weight of the viewing surface and bottom dowel. The case can be installed during the initial construction phase, allowing the screen to be installed later to eliminate job site damage. Case includes a bottom access panel for easy service and maintenance.

Main Features

  • Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
  • Maximum image width up to 16' (488 cm) wide, depending on surface selection.
  • The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is reco mmended when space is at a premium.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Black drop standard, depending on screen size. Extra drop above image area available upon request. Extra drop may increase case size.
  • Sliding brackets on top of the case allow for adjustments when mounting.
  • Sliding brackets inside case accommodate different size screens.
  • Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance.
  • Quick-connect wiring allows for early installation of the case with the addition of the screen later.
  • Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

General Information

Name: Draper 139117U Access E, 137, 16:10 Format, Matte White
Category: Draper, Pro AV, Pro Projectors & Accessories, Pro Projector Screens
UPC Code:
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources

Installation Instructions
Manufacturer Brochure
Additional Resources
