DITEK DTK-RM12EXTS Rack Mount PoE Extender Surge Protector for PoE extender Circuits
DTK-RM12EXTS|DK-RM12EXTS
DITEK DTK-RM12EXTS Rack Mount PoE Extender Surge Protector for PoE extender Circuits
DTK-RM12EXTS|DK-RM12EXTS
DITEK
DITEK DTK-RM12EXTS Rack Mount PoE Extender Surge Protector for PoE extender Circuits
DTK-RM12EXTS | DK-RM12EXTS
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

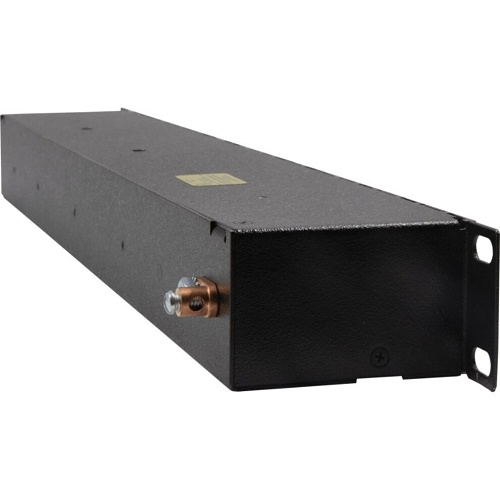

The DTK-RM12EXTS is a 12-channel, upgradeable, 1U rack mount surge protector designed specifically for PoE extender circuits. Using state-of-the art circuitry, provides best-in-breed surge protection for PoE extender circuits and optionally, Ethernet and PoE. The DTK-RM12EXTS supports data speeds up to 10GbE, and provides surge protection grounding to remote devices when used with STP cabling. The DTK-RM12EXTS is ideal for installations with multiple-port mid-span injectors and hybrid network scenarios.
- Uses SAD and GDT technologeis to provide optimal protection for shielded PoE extender circuits
- Rapid-replacement modular design allows modules to be swapped from front of device without removing from rack
- Robust 20kA per pair surge current capacity is the highest offered in a product designed for shielded network devices
- Ready for high-wattage applications
- Optional modules available to support Ethernet and PoE
- Supports up to 24 modules in a single enclosure
Main Features
- Uses SAD and GDT technologies for optimal circuit protection
- Robust 20kA per pair surge current capacity is the highest offered for shielded network devices
- Rapid-replacement modular design allows for modules to be swapped from front of device without removing from rack
- Additional modules can be added to support up to 24-channels
- PoE Plus, HiPoE ready for high-wattage applications
General Information
Name: DITEK DTK-RM12EXTS Rack Mount PoE Extender Surge Protector for PoE extender Circuits
Category: DITEK, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 782980520098
Country of Origin: US. Country of origin is subject to change.
Specifications
ADI Part Number DK-RM12EXTS Brand Name DITEK Manufacturer DITEK Corporation Manufacturer Part Number DTK-RM12EXTS NDAA Compliant Yes Product Model DTK-RM12EXTS Product Name DTK-RM12EXTS 12-Outlet Surge Suppressor/Protector Product Series NETS Product Type Surge Suppressor/Protector Weight 1.68lb
Dataline Protection Ethernet
Receptacles RJ-45
Height 1.8" Width 2.8"
Limited Warranty 10-Year
Environmental Certification RoHS Environmentally Friendly Yes TAA Compliant Yes
