EtherWAN EASYPOE34X Pro Series NEMA-4X Polycarbonate Enclosure, 12-Port 10/100/1000BASE-T PoE (90W) + 4-Port 1/10G SFP+ Managed Switch
EtherWAN EASYPOE34X Pro Series NEMA-4X Polycarbonate Enclosure, 12-Port 10/100/1000BASE-T PoE (90W) + 4-Port 1/10G SFP+ Managed Switch
EtherWAN EASYPOE34X Pro Series NEMA-4X Polycarbonate Enclosure, 12-Port 10/100/1000BASE-T PoE (90W) + 4-Port 1/10G SFP+ Managed Switch
EASYPOE34X | ET-EASPOE34X
Please sign in to view pricing and availability and to add to cart.
Product Overview

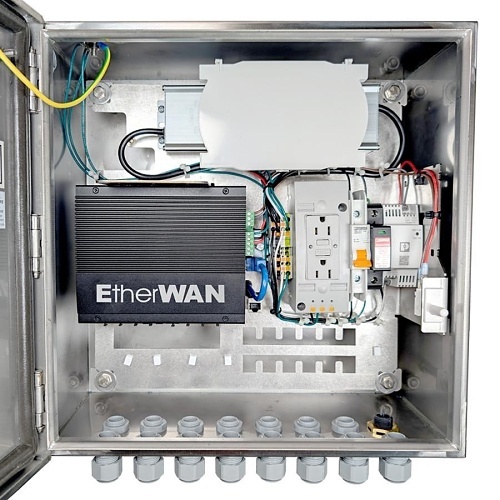

EtherWAN's EasyPoE Pro Series is an integrated outdoor enclosure solution that combines a managed PoE switch, fiber splice tray, power supply, and optional accessories such as a 4G LTE router and RJ45 patch panel, all in a single, secure, NEMA-rated cabinet enclosure. Equipped with up to 12 gigabit PoE ports that provide from 15W up to 90W output per port using the latest IEEE 802.3bt technology and up to 4 SFP uplink ports, the EasyPoE Pro series provides the power, time-saving design, and convenience to support a wide variety of applications including surveillance, LED lighting, and other networking applications.
Main Features
- Wide operating temperature -40 to 75°C (-40 to 167°F)
- Fanless design
- Weather-resistant, anti-corrosion, and vandal-resistant design
- Integrated splicing tray for safe fiber connection storage
- Wall and pole mounting options
- Preinstalled bulkheads for cable connections and DIN-rail for additional devices/accessories
- Futureproof with 90W/port and backward compatibility with all PoE protocols (60W/30W/15W)
- PoE watchdog monitors status of connected PoE devices
- Built-in power supply and surge protection
General Information
Specifications
ADI Part Number ET-EASPOE34X Brand Name EtherWAN Manufacturer EtherWAN Manufacturer Part Number EASYPOE34X Product Line NEMA4MPX Product Model EASYPOE34X Product Name NEMA-4X Enclosure, 12-Port 10/100/1000BASE-T PoE (90W) + 4-Port 1/10G SFP+ Managed Switch Product Series Pro Product Type Puck, Outdoor-Rated IP67MP Weight 27lb
Depth 7.25" Height 15.25" Width 15.25"
Input Voltage 100-240V AC
