EtherWAN EX41941F 4-Port Gigabit PoE, 1-Port Gigabit RJ45 Hardened Unmanaged Ethernet Switch
EX41941F|ET-EX41941F
EtherWAN EX41941F 4-Port Gigabit PoE, 1-Port Gigabit RJ45 Hardened Unmanaged Ethernet Switch
EX41941F|ET-EX41941F
EtherWAN
EtherWAN EX41941F 4-Port Gigabit PoE, 1-Port Gigabit RJ45 Hardened Unmanaged Ethernet Switch
EX41941F | ET-EX41941F
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

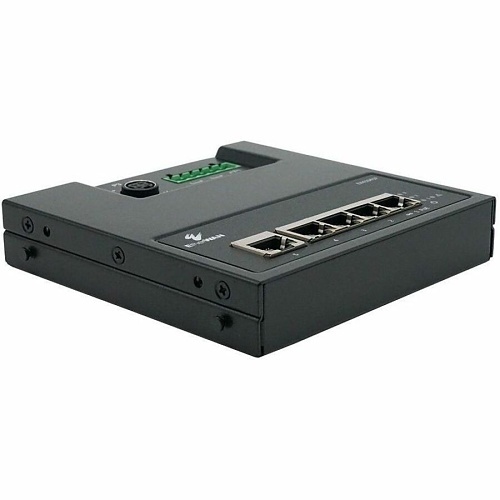

EtherWAN’s EX41941F is a compact hardened unmanaged flat form factor PoE switch which can be wall or DIN-rail mounted. 4Gb PoE ports provide up to 30W output per port with a PoE power budget of 120W, ensuring that the maximum possible power is delivered to every device at all times. 1-RJ45 Uplink port provides flexibility for data transmission and cascading. The EX41941F provides the power required to support various security and other network applications, along with flexibility, speed, and reliability to support networks.
Main Features
- High-Power PoE (Power over Ethernet)
- Hardened-Grade for Non-Ventilated and Harsh Environments
- Up to 30W output per port for various security
- LED Lighting
- Fanless operation
- High impact, thermal shock, and electrical noise resistance
General Information
Name: EtherWAN EX41941F 4-Port Gigabit PoE, 1-Port Gigabit RJ45 Hardened Unmanaged Ethernet Switch
Category: EtherWAN, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 847653005781
Country of Origin: TW. Country of origin is subject to change.
Specifications
ADI Part Number ET-EX41941F Brand Name EtherWAN Manufacturer EtherWAN Systems, Inc Manufacturer Part Number EX41941F Product Model EX41941F Product Name EX41941F Ethernet Switch Product Type Ethernet Switch
Media Type Supported Twisted Pair Power Consumption 5.76W
Network (RJ-45) Yes Total Number of Network Ports 5 Uplink Port Yes
Manageable No
Network Technology 10/100/1000Base-T
Ethernet Technology 10 Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Depth 0.9" Form Factor DIN Rail, Panel Mount, Wall Mount Height 6.5" Width 4.7"
Input Voltage 56V DC PoE (RJ-45) Port Yes PoE Budget 120W
Limited Warranty Lifetime
Features Fanless Package Contents - EX41941F Ethernet Switch
- Mounting Brackets, Screws, 6-pin Terminal Block
- Quick install guide
