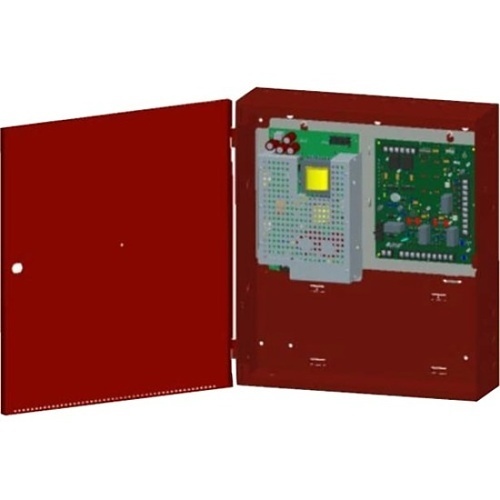

Fire-Lite HPFF12CM 12A Notification Appliance Circuit Expander Power Supply, Chassis Mounted
Fire-Lite HPFF12CM 12A Notification Appliance Circuit Expander Power Supply, Chassis Mounted
Fire-Lite HPFF12CM 12A Notification Appliance Circuit Expander Power Supply, Chassis Mounted
HPFF12CM | FL-HPFF12CM
Please sign in to view pricing and availability and to add to cart.
Product Overview
The Honeywell HPFF8 and HPFF12 Series are Notification Appliance Circuit (NAC) Expander Power Supplies extend the power capabilities of existing NACs and provide power for auxiliary devices. They connect to any 12 or 24V Fire Alarm Control Panel (FACP).
They provide regulated and filtered 24VDC power to four NAC's and an auxillary output. The NAC outputs are rated at 3.0 amps each and the auxillary output is rated at 2.0 amps. These units have a trouble memory feature that displays past troubles (by NAC) for rapid diagnostics. Synchronization is built in for five appliance brands.
The wall mount units can accommodate up to two 18AH batteries. The CM versions mount in Honeywell's large equipment enclosure. Up to three HPFF12CM supplies can be mounted in an EQBB-D4 (4 HPFF8CM's).
In applications that have EOL values other than the 3.9k normally used with the HPFF12, a single resistor matching the existing EOL can be used as a reference for all the outputs, thus speeding up installation.
Main Features
- Durable and long-lasting power supply without interruption
- The constant 24VDC ensures smooth functioning
General Information
Specifications
ADI Part Number FL-HPFF12CM Brand Name Fire-Lite Alarms by Honeywell Manufacturer Honeywell International, Inc Manufacturer Part Number HPFF12CM Product Model HPFF12CM Product Name HPFF12CM Proprietary Power Supply Product Series HPFF12 Product Type Proprietary Power Supply Sector Fire
Output Voltage 24V DC
Depth 5.2" Form Factor Wall Mount Height 19" Width 16.7"
Input Voltage 120V AC Output Current 12A
Mount Type Wall Mount
Compatibility Fire Alarm Control Panel (FACP)
