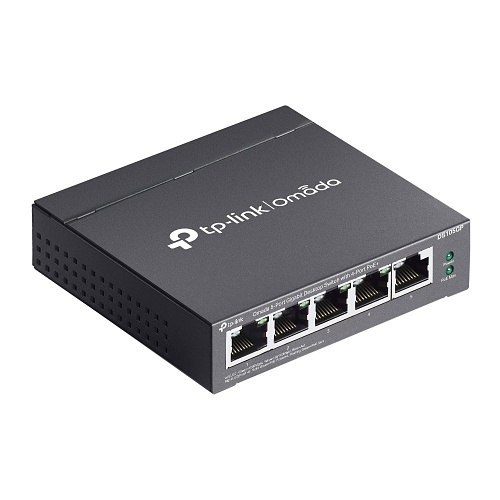

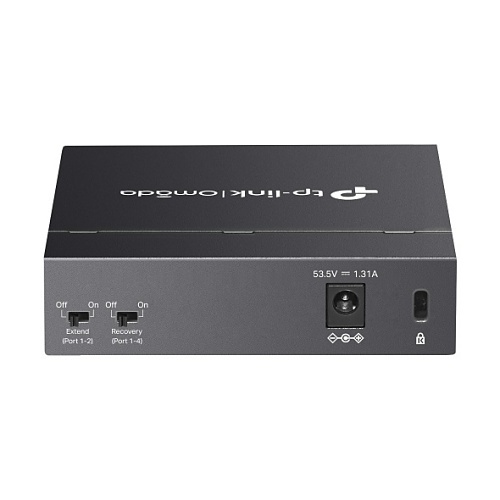

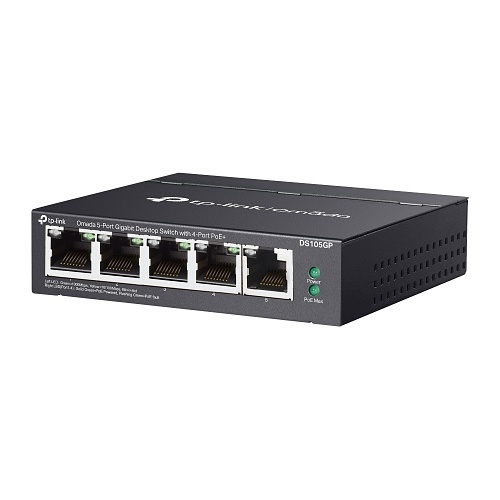

TP-Link DS105GP Omada Unmanaged 5-Port Gigabit Desktop Switch with 4-Port PoE+
DS105GP|FP-DS105GP
TP-Link DS105GP Omada Unmanaged 5-Port Gigabit Desktop Switch with 4-Port PoE+
DS105GP|FP-DS105GP
TP-Link
TP-Link DS105GP Omada Unmanaged 5-Port Gigabit Desktop Switch with 4-Port PoE+
DS105GP | FP-DS105GP
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
- 5 ×10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for all PoE ports
- Up to 250m (820ft) data and power transmitting range under Extend Mode
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required.
Main Features
- 5× 10/100/1000 Mbps RJ45 ports
- with four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for all PoE ports
- Up to 250m (820ft) data and power transmitting range under Extend Mode
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required.
General Information
Name: TP-Link DS105GP Omada Unmanaged 5-Port Gigabit Desktop Switch with 4-Port PoE+
Category: TP-Link, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 840030712548
Country of Origin: VN. Country of origin is subject to change.
Specifications
ADI Part Number FP-DS105GP Brand Name TP-Link Manufacturer TP-LINK Technologies Co., Ltd Manufacturer Part Number DS105GP Product Line Omada Product Model DS105GP Product Name Omada DS105GP 5-Ports Unmanaged Ethernet Switch Product Type Switch
Material Metal Media Type Supported Twisted Pair Power Consumption 74.54W
Network (RJ-45) Yes Total Number of Network Ports 5
Manageable No
Network Technology 10/100/1000Base-T
Ethernet Technology 10 Gigabit Ethernet Networking Standards IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Color Black Depth 3.9" Form Factor Desktop, Wall Mount Height 1" Package Type Box Width 3.9"
Frequency 50 Hz, 60 Hz Input Voltage 53.5V DC PoE (RJ-45) Port Yes PoE Budget 65W Power Source Power Adapter
Mount Type Desktop Mount, Wall Mount
Environmental Certification CE, FCC, RoHS Environmentally Friendly Yes Features Fanless Package Contents DS105GP, Installation guide, Power Adapter TAA Compliant No
