Product Overview
What This Product Does

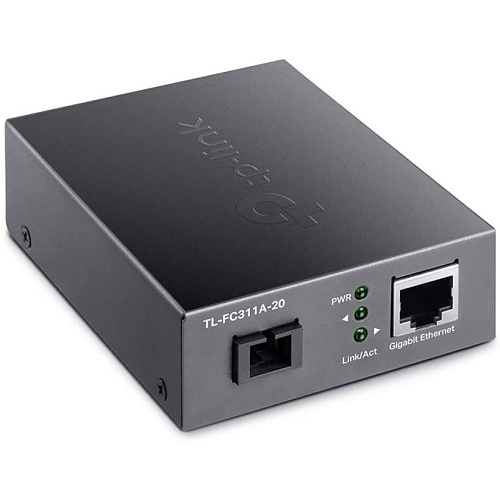

TL-FC311A-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC311A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-20 is one of the products that can cooperate with TL-FC311A-20.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Main Features
- 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20 km
- The unit is standalone and you can place it anywhere on a flat surface
General Information
Specifications
ADI Part Number FP-TLFC31A20 Brand Name TP-Link Manufacturer TP-LINK Technologies Co., Ltd Manufacturer Part Number FC311A-20 Maximum Distance 12.43 Mile Product Model TL-FC311A-20 Product Name Gigabit WDM Media Converter Product Type Transceiver/Media Converter
Fiber Optic Mode Single-mode Media Type Supported Optical Fiber, Twisted Pair
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
Fiber Optic Wavelength 1310 nm, 1550 nm Network Technology 10/100/1000Base-T
Ethernet Technology 10 Gigabit Ethernet
Depth 2.9" Form Factor Standalone Height 1.1" Width 3.7"
Mount Type Freestanding
Package Contents - Gigabit WDM Media Converter
- Power Adapter
- Installation Guide
