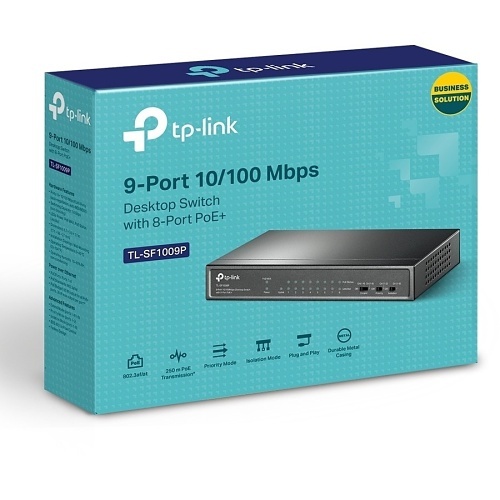

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
TL-SF1009P|FP-TLSF1009P
TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
TL-SF1009P|FP-TLSF1009P
TP-Link
TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
TL-SF1009P | FP-TLSF1009P
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Main Features
- Power Over Ethernet: 8× PoE+(802.3at/af) ports providing up to 30W per port, total PoE budget 65W.
- Plug and Play: Easy setup with no software installation or configuration needed.
- Extend Mode: Up to 250m data and power PoE transmission range under Extend Mode, ideal for surveillance system (SpeedWill be downgraded to 10 Mbps).
- Priority Mode: Support Priority mode for ports 1-2, guarantee high quality of video or voice data transmission.
- Isolation Mode: Support Isolation Mode to isolate broadcast storm, improve Lan security and data transmission.
- Limited Lifetime Warranty: Industry leading limited lifetime warranty and free 24/7 technical support.
- Priority Mode ensures high priority of ports 1-2 to guarantee the quality of sensitive application
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Plug and play with no configuration required
General Information
Name: TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
Category: TP-Link, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 845973099909
Country of Origin: CN. Country of origin is subject to change.
Specifications
ADI Part Number FP-TLSF1009P Brand Name TP-Link Manufacturer TP-LINK Technologies Co., Ltd Manufacturer Part Number TL-SF1009P NDAA Compliant No Product Model TL-SF1009P Product Name 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ Product Type PoE, Unmanaged
Material Metal Media Type Supported Twisted Pair Power Consumption 3.60W
Network (RJ-45) Yes Total Number of Network Ports 9 Uplink Port Yes
Manageable No
Network Technology 10/100Base-T
Ethernet Technology Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Depth 3.9" Form Factor Desktop Mount Height 1.1" Width 6.7"
PoE (RJ-45) Port Yes PoE Budget 65W Power Source Power Adapter
Limited Warranty 3-Year
Environmental Certification RoHS Environmentally Friendly Yes Package Contents - 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
- Power Adapter
- Installation Guide
TAA Compliant No
