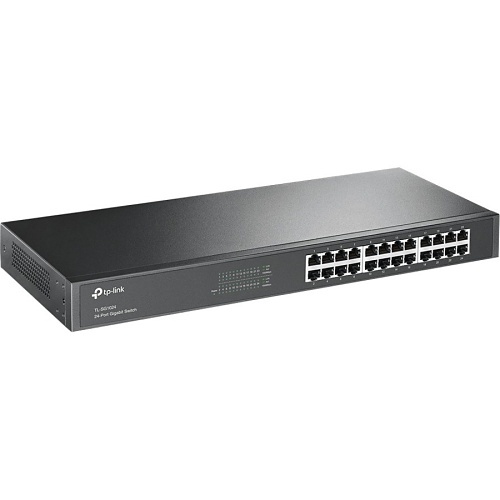

TP-Link TL-SG1024 24-Port Gigabit Rackmount Switch, 19" Rack-Mountable Steel Case
TL-SG1024|FP-TLSG1024
TP-Link TL-SG1024 24-Port Gigabit Rackmount Switch, 19" Rack-Mountable Steel Case
TL-SG1024|FP-TLSG1024
TP-Link
TP-Link TL-SG1024 24-Port Gigabit Rackmount Switch, 19" Rack-Mountable Steel Case
TL-SG1024 | FP-TLSG1024
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The TL-SG1024 Unmanaged Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to boost your old network to 1000Mbps. Increase the speed of your network server and backbone connections make Gigabit a reality. Power users in the home, office, workgroup or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have to move large files across the network almost instantly.
Main Features
- 24 10/100/1000M RJ45 ports.
- Supports MAC address self-learning and auto MDI/MDIX.
- Standard 19" rack-mountable steel case.
- All ports support Full/half duplex transfer mode for 10Mbps/100Mbps and Full duplex transfer mode for 1000Mbps.
- Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode.
General Information
Name: TP-Link TL-SG1024 24-Port Gigabit Rackmount Switch, 19" Rack-Mountable Steel Case
Category: TP-Link, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 845973020101
Country of Origin: Vietnam. Country of origin is subject to change.
Specifications
ADI Part Number FP-TLSG1024 Brand Name TP-Link Manufacturer TP-LINK Technologies Co., Ltd Manufacturer Part Number TL-SG1024 Product Model TL-SG1024 Product Name TL-SG1024 24-Port Gigabit Switch Product Type Unmanaged
Media Type Supported Twisted Pair Power Consumption 13.60W
Network (RJ-45) Yes Total Number of Network Ports 24
Manageable No
Network Technology 10/100/1000Base-T
Ethernet Technology Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Depth 7.1" Form Factor Desktop Mount, Rack Mount Height 1.7" Width 17.3"
Frequency 50 Hz, 60 Hz PoE (RJ-45) Port No Power Source Power Supply
Limited Warranty 3-Year
Country of Origin VN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - TL-SG1024 24-Port Gigabit Switch
- Power Cord
- Installation Guide
- Rackmount Kits
- Rubber Feet
