Image of FP-TLSX3206
TP-Link

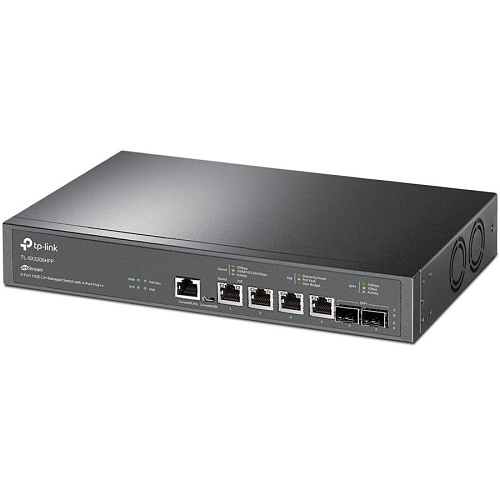

TP-Link SX3206HPP Omada Access Max 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

SX3206HPP|FP-TLSX3206
TP-Link

TP-Link SX3206HPP Omada Access Max 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

SX3206HPP|FP-TLSX3206

Sign In for Dealer Pricing

Become an ADI Customer
Image of FP-TLSX3206
TP-Link

TP-Link SX3206HPP Omada Access Max 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

SX3206HPP | FP-TLSX3206

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Lightning-Fast 10G PoE++ Switch with 4× 60W Ports

JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

TL-SX3206HPP

Lightning-Fast 10G Connection

4× 10GE RJ45 ports and 2× 10GE SFP+ slots feature a total 120 Gbps switching capacity

802.3bt PoE++ Output

Four 10GE RJ45 ports offer 802.3bt PoE++ to provide up to 200 W PoE power budget in total and 60 W for every port

Centralized Cloud Management

SDN solution integration for a highly efficient network

Abundant L3 & L2+ Features

Static Routing, DHCP Server, DHCP Relay, IP Interfaces, IGMP Snooping, and more

Lightning-Fast Connection with Full 10GE Ports

Build and expand your lightning-fast network with TP-Link TL-SX3206HPP-a fully managed switch with full 10GE RJ45 and fiber ports and 120 Gbps switching capacity. The four 10GE RJ45 ports with auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance. Two 10GE SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches can be easily constructed.

120 Gbps Switching Capacity

Empowering the Real WiFi 6 and WiFi 6E with 10G PoE++ Ports

Four 10GE RJ45 ports offer 802.3bt PoE++ to provide up to 200 W PoE power budget in total and 60 W for every port. It unlocks the full bandwidth potential of WiFi 6 and WiFi 6E access points and high power PoE devices. PoE (802.3af), PoE+ (802.3at), and PoE++ (802.3bt) are supported, so you don't need to install new electrical circuits to power your devices.

Easily Build a Whole 10G Network | Unlock the Real WiFi 6 & WiFi 6E

Switch with 10G or 2.5G PoE Ports

Connecting PoE Devices, Hassle-Free

PoE Switch with 10G Uplink

Lightning-Fast Wired Connections

Switch with 10G Ports

Seamless Integration to Omada Cloud SDN

Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

  • Hassle-Free Cloud or On-Premises Controllers
  • Multi-Site Cloud Management
  • Zero-Touch Provisioning (ZTP)
  • Intelligent Monitoring

Advanced L3 Features

An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campus, and ISPs.

  • Static Routing
  • IPv6 Support
  • DHCP Server
  • DHCP Relay
  • IP Interfaces

Main Features

  • Full 10G Lightning-Fast Connection: Offers high-bandwidth connectivity with lightning-fast 4× 10 Gbps RJ45 ports and 2× 10 Gbps SFP+ slots.
  • PoE++ Output with 200 W Power Budget: Four 802.3af/at/bt PoE++ 10G ports with up to 60 W PoE output on each port make it ideal for the deployment of Omada WiFi 6 and WiFi 6E APs.?
  • Abundant L2 and L2+ Features: Supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
  • Robust Security Strategies: Supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

General Information

Name: TP-Link SX3206HPP Omada Access Max 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
Category: TP-Link, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 840030702570
Country of Origin: CN. Country of origin is subject to change.
