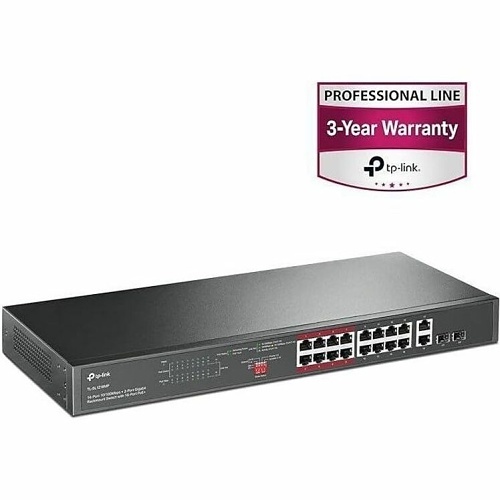

TP-Link TL-SL1218MP 16-Port 10/100 Mbps 2-Port Gigabit Rackmount Switch with 16-Port PoE+
TL-SL1218MP|FP-TSL1218MP
TP-Link TL-SL1218MP 16-Port 10/100 Mbps 2-Port Gigabit Rackmount Switch with 16-Port PoE+
TL-SL1218MP|FP-TSL1218MP
TP-Link
TP-Link TL-SL1218MP 16-Port 10/100 Mbps 2-Port Gigabit Rackmount Switch with 16-Port PoE+
TL-SL1218MP | FP-TSL1218MP
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 150 W PoE power budget* for the 16× PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Main Features
- 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports,and 1×combo Gigabit SFP slot.
- High PoE power budget with up to 30W for each PoE port and 150W for all PoE ports.*
- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**
- Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Easy to use, with no configuration and installation needed.
General Information
Name: TP-Link TL-SL1218MP 16-Port 10/100 Mbps 2-Port Gigabit Rackmount Switch with 16-Port PoE+
Category: TP-Link, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 845973099824
Country of Origin: CN. Country of origin is subject to change.
Specifications
ADI Part Number FP-TSL1218MP Brand Name TP-Link Manufacturer TP-LINK Technologies Co., Ltd Manufacturer Part Number TL-SL1218MP NDAA Compliant No Product Model TL-SL1218MP Product Name 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch Product Type PoE, Unmanaged
Material Metal Media Type Supported Optical Fiber, Twisted Pair Power Consumption 15W
Expansion Slot Type SFP (mini-GBIC) Number of SFP Slots 2 Number of SFP+ Slots 2 Number of Total Expansion Slots 2 Shared SFP Slot Yes
Modular Yes Network (RJ-45) Yes Total Number of Network Ports 16
Manageable No
Network Technology 10/100/1000Base-T, 10/100Base-T, 1000Base-X
Ethernet Technology Fast Ethernet, Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Compatible Rack Unit 1U Depth 7.1" Form Factor Rack Mount Height 1.7" Width 17.3"
Frequency 50 Hz, 60 Hz PoE (RJ-45) Port Yes PoE Budget 250W Power Source Power Supply
Limited Warranty 3-Year
Environmental Certification RoHS Environmentally Friendly Yes Package Contents - 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
- Power Cable
- Installation Guide
- 2 x Mounting Brackets and the Fittings
TAA Compliant No
