Simply45

Simply45 S45-1100 CAT6 Unshielded Standard WE, SS Rj45 with Bars45, 100-pack

S45-1100|G0-S451100
Simply45

Simply45 S45-1100 CAT6 Unshielded Standard WE, SS Rj45 with Bars45, 100-pack

S45-1100|G0-S451100

Sign In for Dealer Pricing

Become an ADI Customer
NULL
Simply45

Simply45 S45-1100 CAT6 Unshielded Standard WE, SS Rj45 with Bars45, 100-pack

S45-1100 | G0-S451100

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

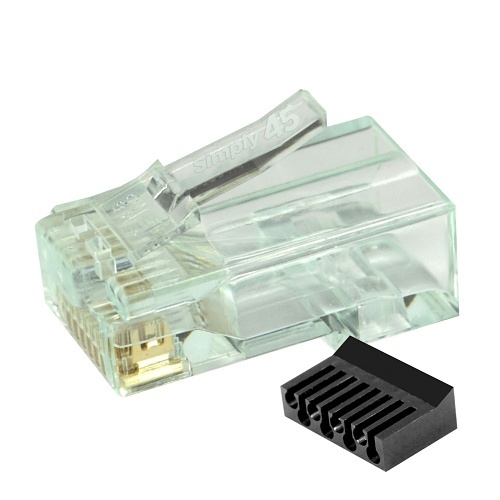

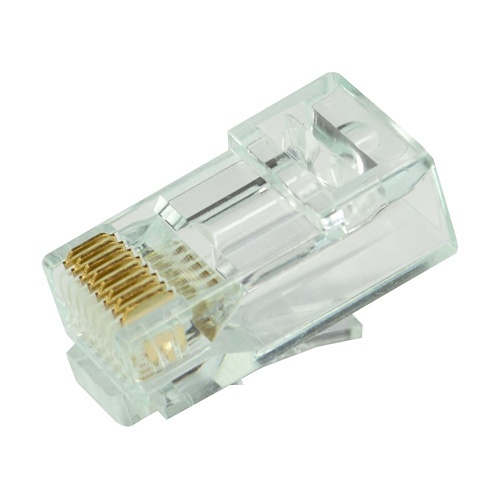

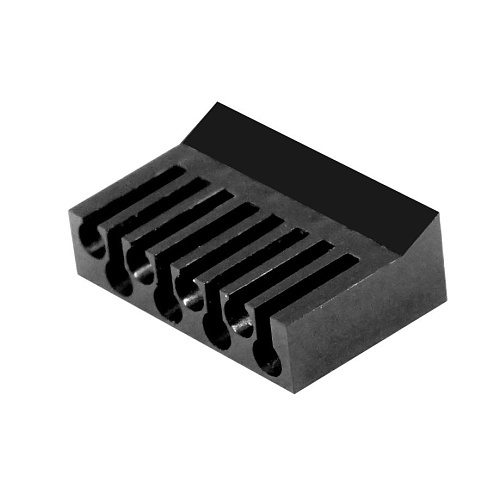

Simply45™ is the industry-leading brand for RJ45 modular plug innovation and performance solutions. Our S45-1100 Standard WE/SS (8P8C) RJ45 modular plugs incorporate the following Features: BarS45™ Load Bar. The Simply45™ BarS45™ are custom-designed load bars designed to match specific Simply45™ RJ45 modular plugs to improve termination performance and SIMPLIFY the termination process. The innovative BarS45™ for our S45-1100 RJ45 is the easiest load bar ever for use with unshielded LAN cables such as Cat6 UTP.

Main Features

  • Standard Mod Plug
  • 24AWG Solid , 28-26AWG Stranded
  • Conductor Range 1.05-1.17mm (0.041″-0.046″)
  • Max Cable OD 7.4mm (0.291″)
  • UL94 V0 Commercial (Plenum, LSZH) Rated
  • Green Tint
  • 3 Prong Style
  • Phosphor Bronze

General Information

Name: Simply45 S45-1100 CAT6 Unshielded Standard WE, SS Rj45 with Bars45, 100-pack
Category: Simply45, Data Comm & Networking, Cable Connectors, Network Cable Connectors
UPC Code: 817777017748
Country of Origin: TW. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
Installation Instructions
