MODAPT | G4-MODAPT
Please sign in to view pricing and availability and to add to cart.
Product Overview

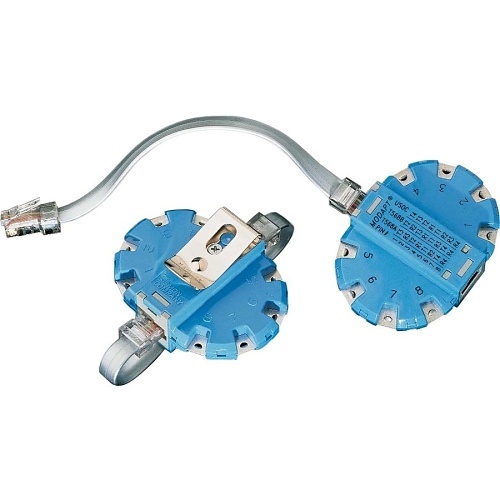

This modular adapter allows in-line testing for any plug/jack combination. It includes two 4-pair outlets plus a 150mm (6 in.) modular cord terminated with our patented 4- pair "universal" plug for accessing any standard 6- or 8-position jack. Individual conductors are broken out by pin number and correspond to eight separate test pads. Test equipment can be securely attached to the test pads using alligator clips. For quick reference in the field, USOC, T568A and T568B wiring charts are printed directly onto the MODAPT body. When used with Siemon's TESTAR® adapter and S110® test adapters, the MODAPT can be used to test connections on S66M and S110 blocks.
Main Features
- Modular cord is made of 26 AWG strandedWire 150 mm (6 inch length)
- Detachable Universal Plug Cord fits any 1-, 2-, 3-, or 4-pair line jack
- Test pads are made of tin-plated Grade A copper alloy and have a tab for a secure grip with alligator clips for hands-free testing
- Convenient belt clip on back side of the MODAPT
- Made of flame-retardant, high impact thermoplastic
- Plug/Jack contacts are made of Grade A copper alloy plated with 50 microinches minimum gold over nickel per FCC part 68 subpart F specifications
- Primary jack provides access to circuitry
General Information
Specifications
ADI Part Number G4-MODAPT Brand Name Siemon Manufacturer The Siemon Company Manufacturer Part Number MODAPT Product Model MODAPT Product Name Test Adapter Product Type Test Adapter
