GRI 4700-AXL Industrial Track Mount Switch Set, 2.5" to 4" Track Size, up to 3" Gap, Reversible Probe Assembly, Closed Loop, Reversible Probe Assembly and 3' Armored Cable Standard,
GRI 4700-AXL Industrial Track Mount Switch Set, 2.5" to 4" Track Size, up to 3" Gap, Reversible Probe Assembly, Closed Loop, Reversible Probe Assembly and 3' Armored Cable Standard,
GRI 4700-AXL Industrial Track Mount Switch Set, 2.5" to 4" Track Size, up to 3" Gap, Reversible Probe Assembly, Closed Loop, Reversible Probe Assembly and 3' Armored Cable Standard,
4700-AXL | GI-4700AXL
Please sign in to view pricing and availability and to add to cart.
Product Overview

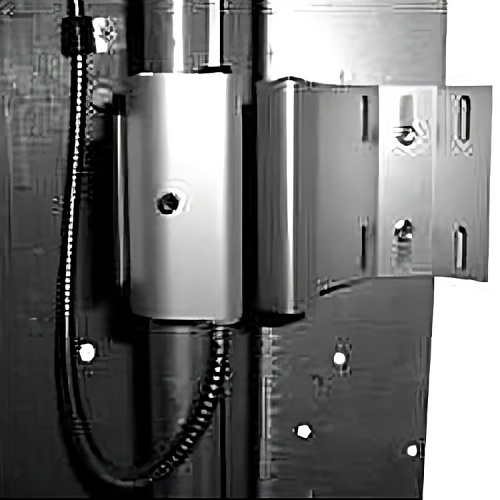

The G.R.I. 4700-A Series Industrial Track Mount Switches are designed to eliminate false alarms from standard floor switches getting damaged by fork lifts and other equipment. The contacts are moved up onto the track and out of the way of equipment.
The 4700-A Series switches are designed to be easy to install and very adjustable. They can attach to a wide range of track sizes and only require tightening one or two screws to install the contacts. It can be installed on either side of the door and the cable exit can be reversed to simplify installation.
An adjustable magnet bracket extends the reach on particularly difficult installations and self drilling screws shorten installations times. Also with a gap of up to 3 inches, doors that wear and get misaligned are not a problem.
Main Features
- Reversible probe assembly
- Left or right installation
- Reversible cable exit
- 3 ft. armored cable standard
- Multi position adjustable magnet bracket
- Closed loop or SPDT
- Hinge design for tighter clamping to track
- Up to 3” gap
- Fits channels from 1.75” up to 4”
- Self drilling screws included for easy installation
General Information
Specifications
ADI Part Number GI-4700AXL Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 4700-AXL Product Name 4700-A Magnetic Contact Product Series 4700-A Product Type Magnetic Contact
Contact Form Form A Power Consumption 10W Standard Gap 3"
Application/Usage Door Color Silver
Input Current 400mA Input Voltage 160V DC Power Source DC
Contact Type N.O. Installation Type Commercial Mount Type Freestanding
