Product Overview

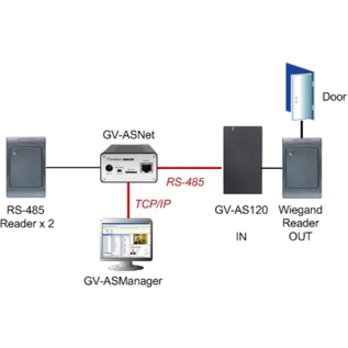

Working as a standalone solution, GV-AS120 is a card reader and also a single door controller. It is possible to add one more card reader to GV-AS120 for entry and exit applications. GV-AS120 has the capability to store up to one thousand cards. When GV-AS120 is being used as a standalone unit, the programming is done from the software GV-ASManager through the RS-485 connection. An economic solution for access control, GV-AS120 is suitable for controlling doors, parking gates and access to elevator call buttons.
Main Features
- 1,000 / 40,000 cards (standalone / networked or RS-485 mode)
- Built-in 2 digital inputs and 1 relay output
- 1Wiegand output (26 ~ 64 bits) for extra reader programming
- 1 door expandable to 2 doors with optional GV-ASBox
- Built-in tampering alarm
- Weather-proof and IP66-compliant housing (for outdoor use)
- Built-in 13.56MHz Reader
General Information
Name: GeoVision GV-AS120 Controller with Built-In Reader
Category: GeoVision, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 4717095107281
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number GU-510AS120 Brand Name GeoVision Manufacturer GeoVision, Inc Manufacturer Part Number 510-AS120-000 Product Line Control Panel Product Model GV-AS120 Product Name GV-AS120 Controller With Built-in Reader Product Series GeoVision Product Type Door Access Control Panel Weight 4.87oz
Identification Method Proximity Number of Doors 1 Number of Users 40000
Wiegand Yes
Application/Usage Door, Elevator, Parking Lot Depth 0.8" Form Factor Standalone Height 4.6" Width 2.6"
Environmental Certification RoHS Environmentally Friendly Yes Indoor/Outdoor Outdoor Package Contents - GV-AS120 Controller With Built-in ReaderPower Adaptor 12V DC / 1.25A
- Power Cord
- 3 x Screw
- 2 x Screw Anchor
- Security Torx
- Enroll Card
- Delete Card
- and more below
