ICC IC107E5TBL Cat5e EZ Connectors, 10-Pack, Blue
IC107E5TBL | H2-107E5TBL
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
CAT5e EZ CAT5e modular jacks, RJ-45 keystone jack, is 8-Position 8-Conductor (8P8C) is engineered to provide superior performance and reliability, supporting up to Gigabit Ethernet applications. The advanced design provides optimum signal quality with up to 10dB headroom providing maximum bandwidth for today’s application. Designed to be extremely easy to terminate, the CAT5e EZ modular jacks simplifies installation and improves overall installation time. Transmission performance exceeds CAT5e connecting hardware requirements specified in ANSI/TIA-568-C.2.
Main Features
- CAT5e rated connectors provide excellent performance for data networks
- Supports Power over Ethernet (PoE ) Type 4, up to 100W
- PCB technology provides maximum performance and superior signal quality
- Enhanced crosstalk cancellation reduces return loss and improves performance
- Exceeds CAT5e industry performance requirements
- Terminate with 110 punch down tool or JackEasy Termination Tool
- Designed with rear 110 IDC reducing termination time

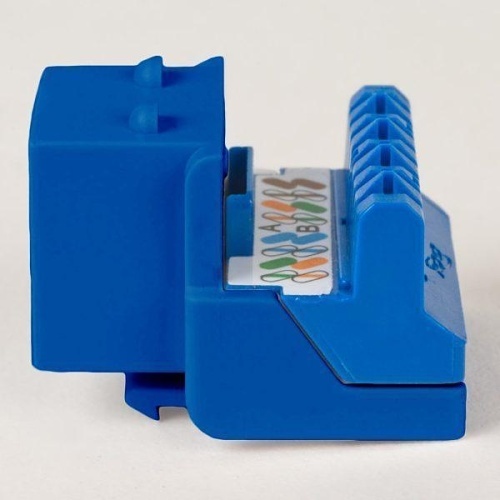

- Includes an integrated TIA-568A/B color wiring diagram
- Backward compatible to all lower rated category components
- Works with all Work Area Outlets faceplates, inserts, surface mount boxes
General Information
Name: ICC IC107E5TBL Cat5e EZ Connectors, 10-Pack, Blue
Category: ICC, Data Comm & Networking, Cable Connectors, Keystone Jacks
UPC Code: 633758095471
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H2-107E5TBL Brand Name ICC Manufacturer Part Number IC107E5TBL Packaged Quantity 10 Product Line EZ Product Name CAT5e RJ45 Keystone Jack for EZ Style Product Type Network Connector
Contact Plating Gold, Phosphor Bronze
Connector Type RJ45 Network Male
Color Blue
