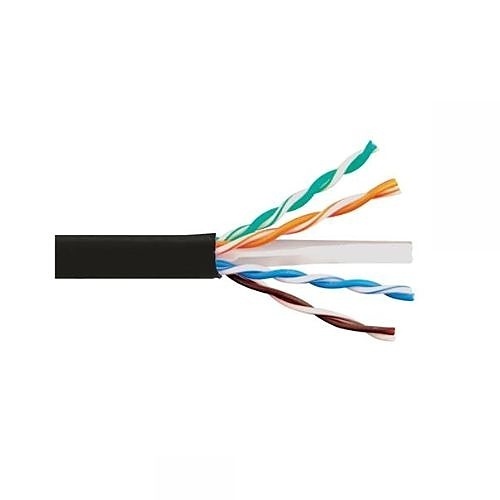

ICC ICCABR6EBK CAT6e CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 600 MHz, UL Certified, 1000' Reelex Pull Box, Black
ICC ICCABR6EBK CAT6e CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 600 MHz, UL Certified, 1000' Reelex Pull Box, Black
ICC ICCABR6EBK CAT6e CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 600 MHz, UL Certified, 1000' Reelex Pull Box, Black
ICCABR6EBK | H2-CABR6EBK
Please sign in to view pricing and availability and to add to cart.
Product Overview
ICC's CAT6e UTP unshielded riser cable provides dependable transmission performance, accommodating 1Gb (Gigabit) Ethernet with a 600MHz bandwidth. This cable not only meets but surpasses TIA Alien Crosstalk requirements, holding ETL Verification to the TIA 568.2-D standard for dependable support of high-speed Ethernet applications. Engineered with precision, the cable features a spline that effectively isolates neighboring twisted pairs, reducing Alien Crosstalk interference. With its riser-rated design and an outer diameter of 0.23 inches, it adheres to safety regulations for vertical installations, making it an ideal choice for a variety of settings, including offices and schools. This cable aligns with the TIA-568-C.2 standard, guaranteeing reliable network connectivity while simplifying installation in riser spaces.
Main Features
- 100% Solid Pure Copper Conductors
- Supports up to 100W PoE++
- 600 MHz Frequency Support
- UL and ETL Certified
- Tangle-Free REELEX II Pull Box
- NEC Section 800.179 Compliant
- TAA and Section 889 Certified
- CMR Riser-Rated for Indoor Use
- Sequential Footage Markings
- Compatible with Fast and Gigabit Ethernet
General Information
Specifications
ADI Part Number H2-CABR6EBK Brand Name ICC Manufacturer ICC Manufacturer Part Number ICCABR6EBK Product Name Category 6e 600MHz Riser UTP Solid Cable Product Type Network Cable
American Wire Gauge 23AWG Cable Rating Riser Cable Type Category 6e Device Supported Network Device Jacket Type CMP, CMR, Riser Shielding No Solid or Stranded Solid
Connector Type RJ-45
Data Transfer Rate 1 Gbit/s
Cable Length 1000' Color Black Insulation Material PE Jacket Material PVC Package Type Pull Box
Limited Warranty 3-Year
Certifications & Standards ETL, RoHS, TIA, UL Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes Features Attenuation to Crosstalk Ratio (ACR), Minimized Near-End Crosstalk (NEXT), Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT)
