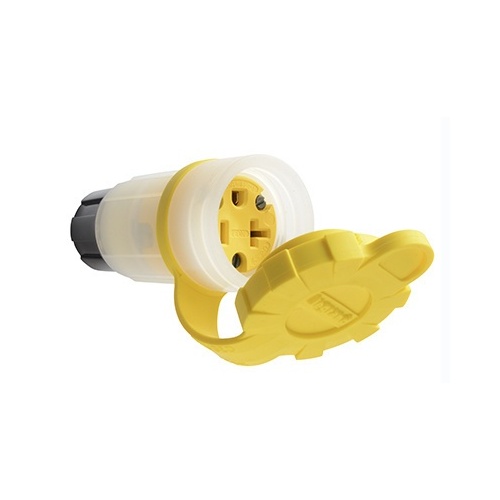

Pass & Seymour 15-W33GCM Straight Blade IP67 GCM Connector, 3W, 20A, 125V
15-W33GCM|H4-15W33GCM
Pass & Seymour 15-W33GCM Straight Blade IP67 GCM Connector, 3W, 20A, 125V
15-W33GCM|H4-15W33GCM
Pass & Seymour by Legrand
Pass & Seymour 15-W33GCM Straight Blade IP67 GCM Connector, 3W, 20A, 125V
15-W33GCM | H4-15W33GCM
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Rated watertight for 1,500 psi high-pressure hose-down, Pass and Seymour watertight GCM plugs and connectors feature multiple seals to ensure protection against the environment. The transparent body houses dual LED lights with 360 visibility, indicating ground continuity and power status, while providing a NEMA 6P/IP67 rating.
Main Features
- Integral indication of ground continuity and power status, Green LEDs indicate proper ground continuity and power status, Red LEDs indicate ground continuity loss or reversed polarity, No LED indicates open hot, open neutral or hot to ground cross
- Convenient continuous monitoring enhances personnel safety
- Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat and weather, Large ribs on body for a superior grip when mating
- Exclusive 2-piece cord grip accepts a wide range of cord widths and provides more consistent pressure for superior conductor retention
- Recessed cord-grip screw reduces screwdriver slippage for improved safety, Quick-thread tri-drive assembly and cord-grip screws come backed-out and ready-to-wire
- Internal dust shield keeps terminals free of contaminants
- Color-coded terminal screws are positioned on the same plane and backed-out for fast installation
- Nickel-plated blades and contacts for long lasting, superior corrosion resistance
General Information
Name: Pass & Seymour 15-W33GCM Straight Blade IP67 GCM Connector, 3W, 20A, 125V
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Power Connectors
UPC Code: 785007040753
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-15W33GCM Brand Name Pass & Seymour by Legrand Manufacturer Part Number 15-W33GCM Product Line Pass and Seymour Product Name 20A, 125V Straight Blade Ground Continuity Monitoring GCM Connector Product Type Connector
