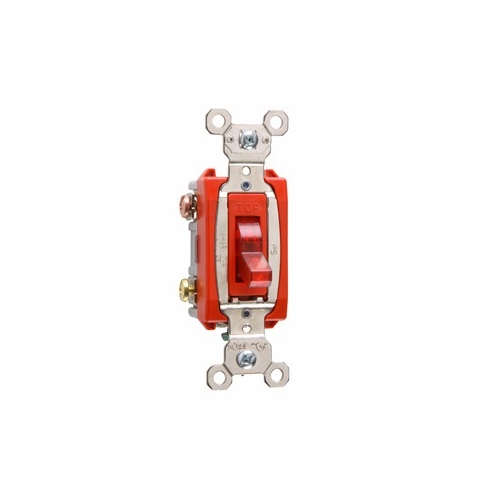

Pass & Seymour PS20AC3-RPL7 20A 277VAC Black Silver Wire 3-Way Pilot Switch, Red
PS20AC3-RPL7|H4-20AC3RPL7
Pass & Seymour PS20AC3-RPL7 20A 277VAC Black Silver Wire 3-Way Pilot Switch, Red
PS20AC3-RPL7|H4-20AC3RPL7
Pass & Seymour by Legrand
Pass & Seymour PS20AC3-RPL7 20A 277VAC Black Silver Wire 3-Way Pilot Switch, Red
PS20AC3-RPL7 | H4-20AC3RPL7
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour PS20AC3-RPL7 is a robust 20A 277VAC switch designed for reliable performance. It features an external screw-pressure-plate for back and side wiring, compatible with #14 - #10 AWG copper conductors. The heavy-gauge copper alloy contact arm minimizes contact bounce, while cam mechanisms ensure quick connection and disconnection to reduce arcing. Enjoy quiet use thanks to heavy-duty bumper pads and a durable polycarbonate toggle. Built with glass-reinforced nylon and enhanced by oversized silver alloy contacts, it offers long service life and efficient heat dissipation. The unit includes a grounding terminal and a locking support for added safety, with a compact design for easy installation. Upgrade your electrical setup with this dependable switch today!
Main Features
- External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast ''make'' and positive ''break'' to minimize arcing
- Heavy-duty bumper pads for quiet operation
- High strength thermoplastic polycarbonate toggle
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Oversized silver alloy contacts for long life and better heat dissipation
- Grounding terminal is standard
- Shallow design for ease of installation
General Information
Name: Pass & Seymour PS20AC3-RPL7 20A 277VAC Black Silver Wire 3-Way Pilot Switch, Red
Category: Pass & Seymour by Legrand, Smart Home, Smart Dimmers & Light Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-20AC3RPL7 Brand Name Pass & Seymour by Legrand Manufacturer Part Number PS20AC3-RPL7 Product Name Industrial Extra Heavy Duty Specification Grade Switch, Lighted When On, Back and Side Wire, Red Product Type Switch
Color Red Depth 1.09" Height 4.2" Width 1.25"
Current Rating 20A Power Rating 3W
Certifications & Standards UL 20 Country of Origin MX
