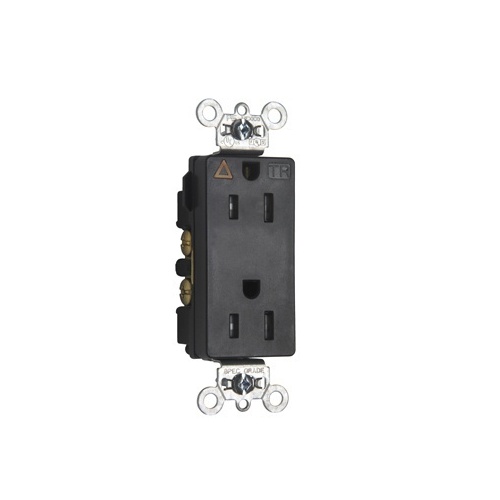

Pass & Seymour TRIG26262-BK IG TR Decora Receptacle 15A 125V, Black
TRIG26262-BK|H4-26262BK
Pass & Seymour TRIG26262-BK IG TR Decora Receptacle 15A 125V, Black
TRIG26262-BK|H4-26262BK
Pass & Seymour by Legrand
Pass & Seymour TRIG26262-BK IG TR Decora Receptacle 15A 125V, Black
TRIG26262-BK | H4-26262BK
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Tamper-resistant isolated ground decorator spec grade duplex receptacle, back and side wire, 15A, 125V, orange.
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly
- .032" thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
General Information
Name: Pass & Seymour TRIG26262-BK IG TR Decora Receptacle 15A 125V, Black
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007012132
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-26262BK Brand Name Pass & Seymour by Legrand Manufacturer Part Number TRIG26262-BK Product Line Pass & Seymour Product Name Tamper-Resistant Isolated Ground Decorator Spec Grade Receptacle, Back and Side Wire, 15A, 125V, Black Product Type Receptacle
Color Black Depth 1.25" Height 3.62" Width 1.18"
Current Rating 15A Voltage Rating 125V
Country of Origin MX Environmental Certification UL
