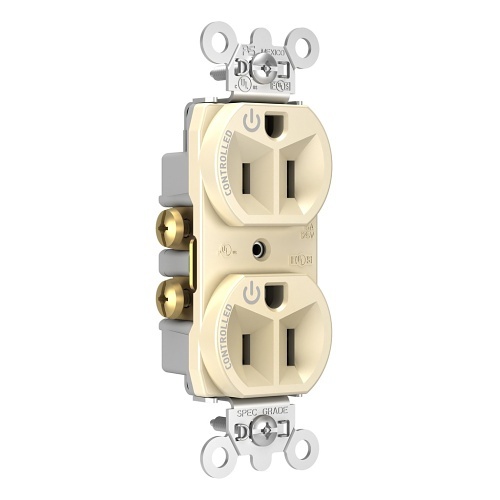

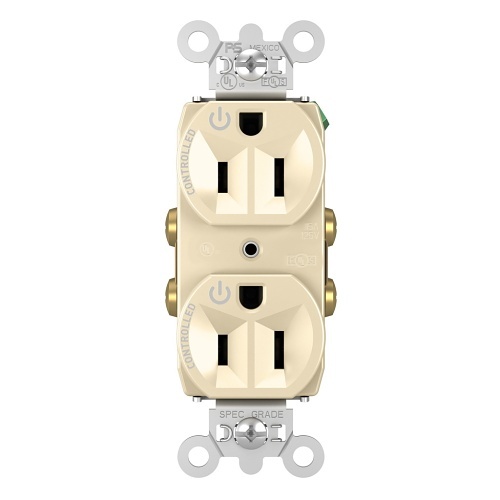

Pass & Seymour 5262-CD-LA Power Outlet, 15A Dual Contact Duplex Receptacle, Light Almond
5262CD-LA|H4-5262CDLA
Pass & Seymour 5262-CD-LA Power Outlet, 15A Dual Contact Duplex Receptacle, Light Almond
5262CD-LA|H4-5262CDLA
Pass & Seymour by Legrand
Pass & Seymour 5262-CD-LA Power Outlet, 15A Dual Contact Duplex Receptacle, Light Almond
5262CD-LA | H4-5262CDLA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Permanent controlled receptacle marking allows for long-lasting, easy identification of controlled receptacle for end-users. NEMA-approved and compliant with 2014 NEC, CA Title 24, and ASHRAE Energy Efficiency Standard 90.1.
Main Features
- Can be wired to any number of system-based or stand-alone plug load control solutions
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- 0.032 inch thick, brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact-resistant nylon face
- 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal and mounting screws
- Auto-ground clip assures positive ground
General Information
Name: Pass & Seymour 5262-CD-LA Power Outlet, 15A Dual Contact Duplex Receptacle, Light Almond
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007038163
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-5262CDLA Brand Name Pass & Seymour by Legrand Manufacturer Part Number 5262CD-LA
