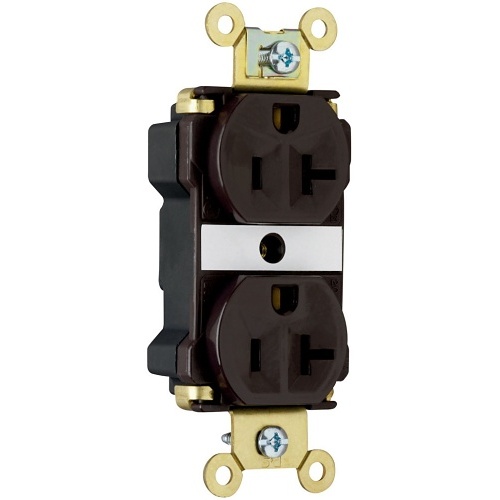

Pass & Seymour 5362-A Power Outlet, DUP RECP 20A/125V AC, Brown
5362-A|H4-5362A
Pass & Seymour 5362-A Power Outlet, DUP RECP 20A/125V AC, Brown
5362-A|H4-5362A
Pass & Seymour by Legrand
Pass & Seymour 5362-A Power Outlet, DUP RECP 20A/125V AC, Brown
5362-A | H4-5362A
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour 5362-A Duplex Receptacle by Legrand boasts a one-piece brass mounting strap with integral grounding for secure safety. It features durable 0.032 and 0.036" thick brass triple-wipe power contacts ensuring reliable retention. Two drive screws firmly anchor the strap to both the back body and face, while the patented circuit label on the face offers permanent circuit identification. Installation is simplified with an easily accessible break-off connecting tab for split-circuit wiring and oversized #10 deep tri-drive head screws. The design includes external screw-pressure-plate clamps for both ground and back wire connections, providing visual assurance of a solid connection. Compatible with a range of wall plates from TradeMaster to metal options. Upgrade your electrical setup with this robust, easy-to-install receptacle today!
Main Features
- One-piece brass mounting strap with integral ground
- 0.032 inch thick, brass, triple-wipe power contacts for lasting retention
- Two drive screws anchor strap to back body and face
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- 0.036 inch thick, brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Oversized #10 deep tri-drive head brass terminal and ground screws
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
General Information
Name: Pass & Seymour 5362-A Power Outlet, DUP RECP 20A/125V AC, Brown
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007528107
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-5362A Brand Name Pass & Seymour by Legrand Manufacturer Part Number 5362-A Product Name 20A 125V Industrial Extra Heavy Duty Spec-Grade Duplex Receptacle, Back and Side Wire, Brown Product Type Duplex Receptacle
Color Brown Depth 0.9" Height 2.75" Width 1.63"
Current Rating 20A Voltage Rating 125V
Certifications & Standards CSA C22.2 No. 42, cULus UL498 Country of Origin MX Environmental Certification UL94 V2
