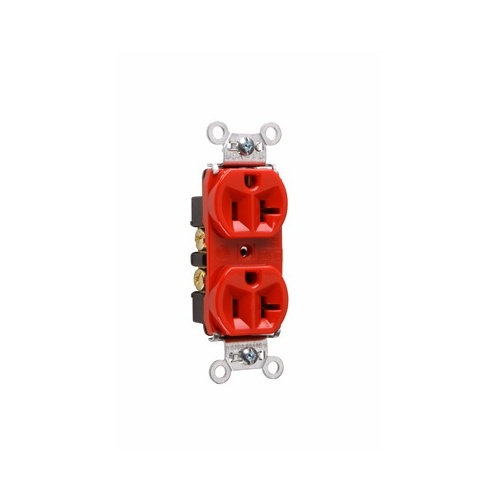

Pass & Seymour 5362- Duplex Receptacle, 20A, 125V, Side and Back Wired, Red
5362-RED|H4-5362RED
Pass & Seymour 5362- Duplex Receptacle, 20A, 125V, Side and Back Wired, Red
5362-RED|H4-5362RED
Pass & Seymour by Legrand
Pass & Seymour 5362- Duplex Receptacle, 20A, 125V, Side and Back Wired, Red
5362-RED | H4-5362RED
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour 5362-RED RECP DUP 20A 125V features a corrosion-resistant plated steel strap securely locked to the face and back, reinforced by two drive screws to prevent detachment under stress. Its impact-resistant nylon face ensures durability, while eight-hole internal screw-pressure-plate back wire terminals accept a broad range of #10 - #14 AWG copper conductors. Isolated terminal compartments enhance conductor security, complemented by an auto-ground clip for reliable grounding. Engineered for safety, it withstands up to 30°C temperature rise at full load and operates smoothly between -40°C and 60°C. Upgrade your electrical system with this robust and efficient receptacle today!
Main Features
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- Two drive screws anchor strap to back body and face where abrupt removal torque is greatest
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact-resistant nylon face
- 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- Auto-ground clip assures positive ground
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour 5362- Duplex Receptacle, 20A, 125V, Side and Back Wired, Red
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007536249
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-5362RED Brand Name Pass & Seymour by Legrand Manufacturer Part Number 5362-RED Product Name 20A 125V Hard Use Spec-Grade Duplex Receptacle, Back and Side Wire, Red Product Type Duplex Receptacle
Color Red Depth 0.78" Height 2.63" Width 1.32"
Current Rating 20A Voltage Rating 125V
Limited Warranty 1-Year
Certifications & Standards CSA C22.2 No. 42, UL498 Country of Origin MX
