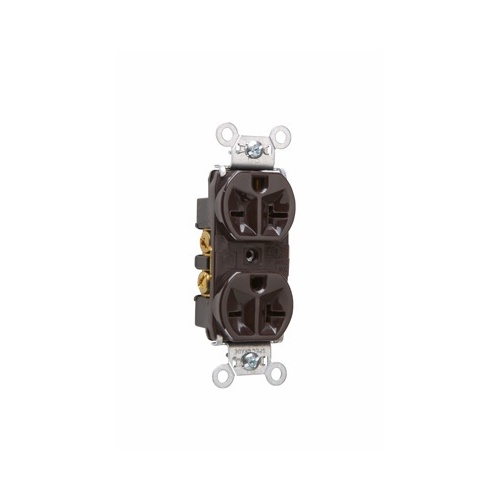

Pass & Seymour 5862 Duplex Receptacle, 20A, 250V, Side and Back Wired, Brown
5862|H4-5862
Pass & Seymour 5862 Duplex Receptacle, 20A, 250V, Side and Back Wired, Brown
5862|H4-5862
Pass & Seymour by Legrand
Pass & Seymour 5862 Duplex Receptacle, 20A, 250V, Side and Back Wired, Brown
5862 | H4-5862
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Experience the durability and reliability of the Pass & Seymour 5862 RECP DUP 20A 250V, designed with a robust brass strap that enhances strength and ground conductivity. The strap securely locks to the face and back to prevent separation, ensuring long-lasting performance. Enjoy quick installation thanks to the easily accessible break-off tab for split-circuit wiring. Crafted with a high-strength nylon face and equipped with internal screw-pressure-plate wiring, it supports various copper conductors. It also features an auto-ground clip for guaranteed grounding and withstands temperatures from -40°C to 60°C with minimal temperature rise. Perfect for those seeking a dependable, heavy-duty electrical component, make it yours today!
Main Features
- Heavy-duty, brass strap for added strength and ground conductivity
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Strap tabs wrap around face to prevent strap from separating from face and back body
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- High strength nylon face
- Internal screw-pressure-plate back and side wired to accept #14 and #10 AWG stranded or solid copper or copper-clad conductors
- Auto-ground clip assures positive ground
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour 5862 Duplex Receptacle, 20A, 250V, Side and Back Wired, Brown
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007549003
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-5862 Brand Name Pass & Seymour by Legrand Manufacturer Part Number 5862 Product Name 20A 250V Heavy Duty Spec-Grade Duplex Receptacle, Back and Side Wire, Brown Product Type Duplex Receptacle
Color Brown Depth 0.78" Height 2.63" Width 1.32"
Current Rating 20A Voltage Rating 250V
Certifications & Standards CSA C22.2 No. 42, cULus UL498 Country of Origin MX Environmental Certification UL94 V2
