Product Overview

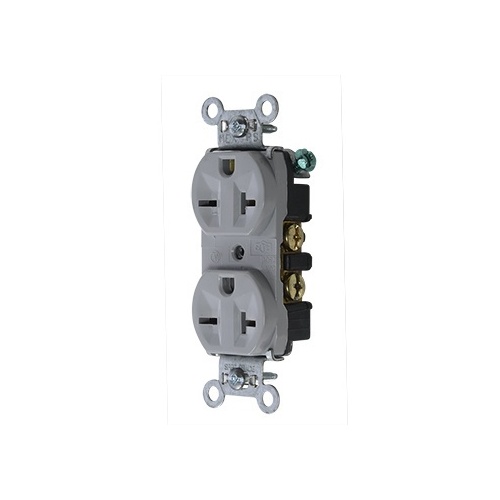

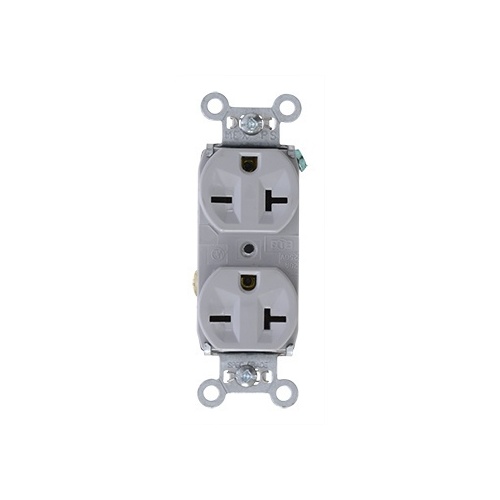

The Pass & Seymour 5862-GRY is a durable 20A, 250V duplex receptacle designed for reliable performance. It features a robust brass strap that enhances strength and grounding, with tabs that securely lock the strap to prevent separation. The device includes an easily accessible break-off tab for quick split-circuit wiring. Its high-strength nylon face and internal screw-pressure-plate back accept #14 and #10 AWG copper or copper-clad conductors. An auto-ground clip ensures a secure ground connection. This receptacle withstands temperature rises up to 30°C and operates safely between -40°C and 60°C. Upgrade your electrical setup with this dependable and sturdy receptacle today!
Main Features
- Heavy-duty, brass strap for added strength and ground conductivity
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Strap tabs wrap around face to prevent strap from separating from face and back body
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- High strength nylon face
- Internal screw-pressure-plate back and side wired to accept #14 and #10 AWG stranded or solid copper or copper-clad conductors
- Auto-ground clip assures positive ground
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour 5862-GRY Power Outlet, Duplex 20A 250V S+B Wire, Gray
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007549027
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-5862GRY Brand Name Pass & Seymour by Legrand Manufacturer Part Number 5862-GRY Product Name 20A 250V Heavy Duty Spec-Grade Duplex Receptacle, Back and Side Wire, Gray Product Type Duplex Receptacle
Color Gray Depth 0.78" Height 2.63" Width 1.32"
Current Rating 20A Voltage Rating 250V
Certifications & Standards CSA C22.2 No. 42, cULus UL498 Country of Origin MX Environmental Certification UL94 V2
