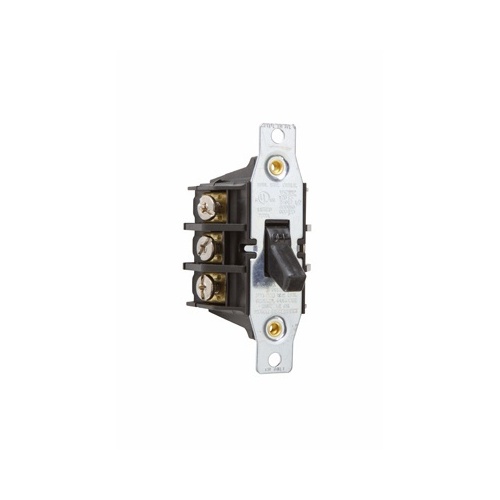

Pass & Seymour 7803-MD 30A 3-Phase AC Motor
7803-MD | H4-7803MD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Three Pole, Three Phase AC Manual Motor Controller, suitable as Motor Disconnect - 10KA @ 600VAC, 30A max. Class J Fuse.
Main Features
- High Horsepower rating of 20HP
- Gull-wing shaped brass terminal pressure clamps
- Constructed of glass-reinforced thermoplastic
- UL508 and cULus Listing of individual device and assembled device within enclosure
- Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing
- Two-point contact arm design reduces overall unit size
- Two oversized silver alloy contacts withstand years of use; improve heat dissipation by distributing arc energy
- One-piece contact carrier constructed of glassreinforced thermoplastic ensures long-lasting ""make and break"" performance
General Information
Name: Pass & Seymour 7803-MD 30A 3-Phase AC Motor
Category: Pass & Seymour by Legrand, Smart Home, Smart Dimmers & Light Switches
UPC Code: 785007267686
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-7803MD Brand Name Pass & Seymour by Legrand Manufacturer Part Number 7803-MD Product Name Three Pole Three Phase AC Manual Controller Product Type Manual Controller
Depth 1.753" Height 3.67" Width 1.82"
Current Rating 30A Input Voltage 600V
Certifications & Standards CSA Listed, UL Listed Country of Origin MX
