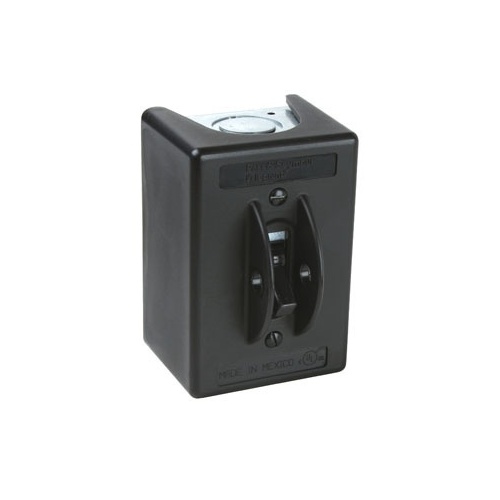

Pass & Seymour 7813-PMD 30A 3P NEMA 1 Enclosure
7813-PMD|H4-7813PMD
Pass & Seymour 7813-PMD 30A 3P NEMA 1 Enclosure
7813-PMD|H4-7813PMD
Pass & Seymour by Legrand
Pass & Seymour 7813-PMD 30A 3P NEMA 1 Enclosure
7813-PMD | H4-7813PMD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
AC manual motor controller, suitable as motor disconnect - 10KA at 600V AC, 30A max. Class J fuse.
Main Features
- High Horsepower rating of 20HP
- Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing
- External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals
- Constructed of glass-reinforced thermoplastic
- UL508 and cULus listing of individual device and assembled device within enclosure
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates
- Gull-wing shaped brass terminal pressure clamps
General Information
Name: Pass & Seymour 7813-PMD 30A 3P NEMA 1 Enclosure
Category: Pass & Seymour by Legrand, Data Comm & Networking, Electrical Back Boxes & Brackets, Electrical Back Boxes
UPC Code: 785007267693
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-7813PMD Brand Name Pass & Seymour by Legrand Manufacturer Part Number 7813-PMD Product Line Pass and Seymour Product Name Three Pole Three Phase AC Manual Motor Controller Product Type Lighting Controls and Modifier
Color Black Depth 2.8" Height 3.9" Width 2.8"
Environmental Certification UL Environmentally Friendly Yes
