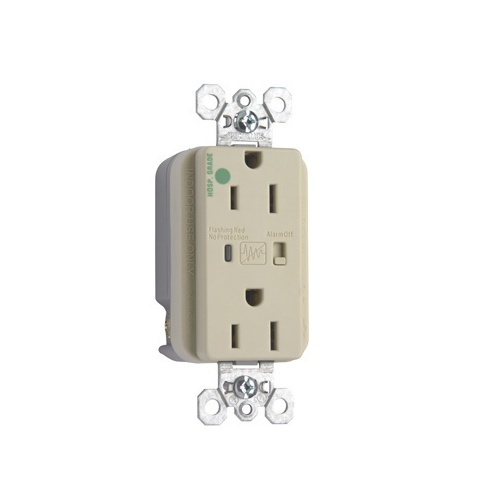

Pass & Seymour 8200-ISP Heavy Duty Transient Voltage Surge Suppressor Receptacle 15A 125V, Ivory
8200-ISP|H4-8200ISP
Pass & Seymour 8200-ISP Heavy Duty Transient Voltage Surge Suppressor Receptacle 15A 125V, Ivory
8200-ISP|H4-8200ISP
Pass & Seymour by Legrand
Pass & Seymour 8200-ISP Heavy Duty Transient Voltage Surge Suppressor Receptacle 15A 125V, Ivory
8200-ISP | H4-8200ISP
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Hospital grade surge protective duplex receptacle offers increased transient protection, reliability and protection notification (audible alarm with LED indicator). Back and side wire, 15A 125V, ivory.
Main Features
- Solid-state LED monitor has 25-year minimum life expectancy
- LED Indication. Steady green = protected. Flashing re = not protected. OFF = no power to unit
- Audible alarm alert of MOV damage, alarm able to be turned on/off
- Wrap-around steel strap for structural integrity, suto-ground is standard, for easier installation
- Impact-resistant thermoplastic exterior resists impacts and scrapes
- Triple-wipe, copper-alloy contacts for superior, more dependable connection
- External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept 14 - 10AWG copper or copper-clad, solid or stranded conductors
- Thermal protection in 3 modes, 3 17mm dual pack MOVs absorb up to 340 joules of excess energy in each leg (L-N, L-G, N-G) with 24,000A current handling capability for full, equal and symmetrical protection
- A high visibility, wide-angle lens indicates protection is in place
- External pressure plate feature allows two conductors to be terminated by a single screw
General Information
Name: Pass & Seymour 8200-ISP Heavy Duty Transient Voltage Surge Suppressor Receptacle 15A 125V, Ivory
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007194487
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-8200ISP Brand Name Pass & Seymour by Legrand Manufacturer Part Number 8200-ISP Product Line Pass & Seymour Product Name Hospital Grade Surge Protective Duplex Receptacle, Ivory Product Type Receptacle
Color Ivory
Current Rating 15A
Country of Origin MX Environmental Certification UL
