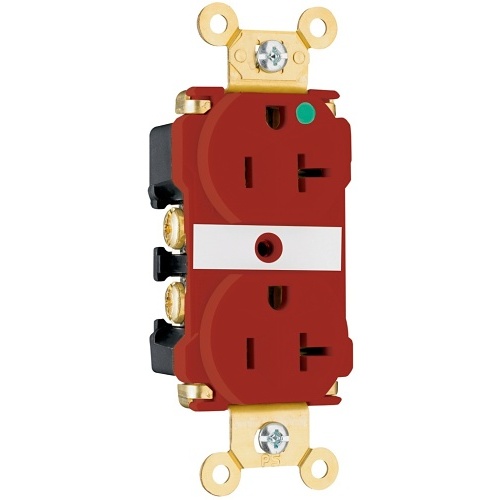

Pass & Seymour 8300-ILRED Power Outlet, Hospital Grade Duplex Receptacle, 20A, Red
8300-ILRED|H4-8300ILRED
Pass & Seymour 8300-ILRED Power Outlet, Hospital Grade Duplex Receptacle, 20A, Red
8300-ILRED|H4-8300ILRED
Pass & Seymour by Legrand
Pass & Seymour 8300-ILRED Power Outlet, Hospital Grade Duplex Receptacle, 20A, Red
8300-ILRED | H4-8300ILRED
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour 8300-ILRED hospital-grade duplex illuminated receptacle is crafted for durability and safety. It features a one-piece nickel-plated brass mounting strap with an integral ground for reliable grounding. The strap tabs securely lock the face to the body, supported by two drive screws for enhanced stability. This receptacle offers a patented circuit label on the face for permanent identification and uses thick nickel-plated brass triple-wipe contacts for lasting power retention. Installation is simplified with an easily accessible break-off tab for split-circuit wiring and external screw-pressure-plate back wire clamps on the ground terminal for quick, secure connections. Its impact-resistant nylon face and back body, oversized tri-drive head brass screws, and visual assurance of proper wiring make it an excellent choice for high-demand hospital settings. Upgrade your electrical setup with this dependable, easy-to-install receptacle today!
Main Features
- One-piece nickel-plated brass mounting strap with integral ground
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Two drive screws anchor strap to back body and face
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- 0.040 inch thick, nickel-plated brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact-resistant nylon face and back body
- Oversized #10 deep tri-drive head brass terminal and ground screws
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- External nickel-plated screw-presure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection
General Information
Name: Pass & Seymour 8300-ILRED Power Outlet, Hospital Grade Duplex Receptacle, 20A, Red
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007830163
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-8300ILRED Brand Name Pass & Seymour by Legrand Manufacturer Part Number 8300-ILRED Product Name Extra Heavy Duty Hospital Grade LED Illuminated Face Receptacles, Back and Side Wire, 20A, 125V, Red Product Type Receptacle
Color Red Depth 0.866" Height 2.75" Width 1.63"
Current Rating 20A Voltage Rating 125V
Certifications & Standards CSA C22.2 No. 42, cULus UL498 Country of Origin MX Environmental Certification UL94 V2, UL94-5 VA
