Pass & Seymour 8300-LA Power Outlet, HG Duplex Receptacle, 20A 125V, Light Almond
8300-LA|H4-8300LA
Pass & Seymour 8300-LA Power Outlet, HG Duplex Receptacle, 20A 125V, Light Almond
8300-LA|H4-8300LA
Pass & Seymour by Legrand
Pass & Seymour 8300-LA Power Outlet, HG Duplex Receptacle, 20A 125V, Light Almond
8300-LA | H4-8300LA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

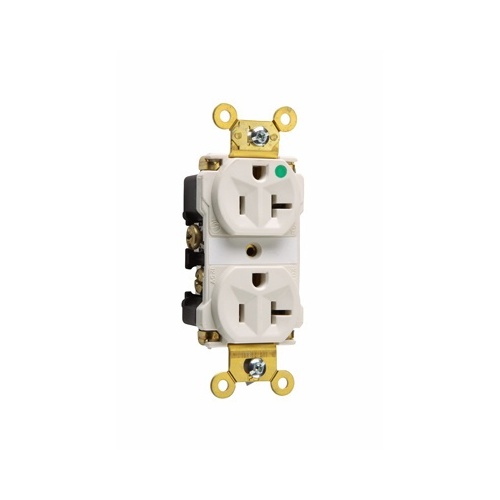

The Pass & Seymour 8300-LA duplex receptacle by Legrand offers reliable performance with a one-piece nickel-plated brass mounting strap including an integral ground for secure installation. Its patented shutter system enhances safety by preventing foreign object insertion. Two drive screws firmly anchor the strap to the back body and face, while a circuit label on the face ensures permanent identification. Durable triple-wipe power contacts and easily accessible break-off tabs simplify wiring. Oversized brass terminal and ground screws, plus external screw-pressure-plate clamps, guarantee a secure connection. Compatible with various wall plate options, this receptacle combines safety, durability, and ease of installation. Upgrade your space with this trusted solution today!
Main Features
- One-piece nickel-plated brass mounting strap with integral ground
- patented shutter system helps prevent improper insertion of foreign objects
- Two drive screws anchor strap to back body and face
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- 0.040 inch thick, nickel-plated brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Oversized #10 deep tri-drive head brass terminal and ground screws
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- External nickel-plated screw-presure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
General Information
Name: Pass & Seymour 8300-LA Power Outlet, HG Duplex Receptacle, 20A 125V, Light Almond
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007830187
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-8300LA Brand Name Pass & Seymour by Legrand Manufacturer Part Number 8300-LA Product Name 20A 125V Extra Heavy Duty Hospital-Grade Duplex Receptacle, Back and Side Wire, Light Almond Product Type Duplex Receptacle
Color Almond Depth 0.866" Height 2.75" Width 1.63"
Current Rating 20A Voltage Rating 125V
Limited Warranty 1-Year
Certifications & Standards CSA C22.2 No. 42, cULus UL498 Country of Origin MX Environmental Certification UL94 V2, UL94-5 VA
