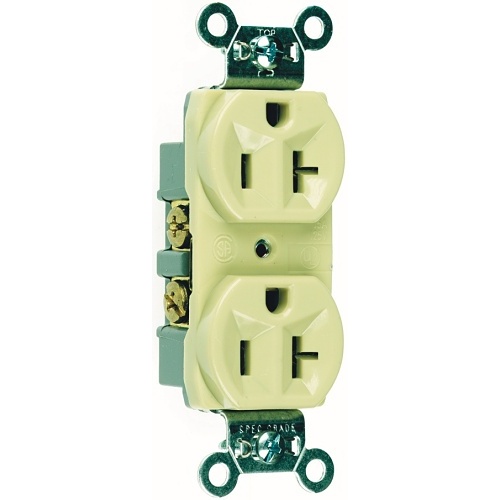

Pass & Seymour CR20-I Receptacle Duplex 20A/125V Side Wire Ivory
CR20-I | H4-CR20I
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Commercial spec grade duplex receptacle, side wire 20A 125V.
Main Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly
- .032" thick, brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact-resistant nylon face and thermoplastic back body
- Accepts 14 - 10AWG solid or stranded copper or copper-clad wire
- Terminal compartments isolated from each other for positive conductor containment
- Auto-ground clip assures positive ground
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous 50°C, minimum -40°C without impact
General Information
Name: Pass & Seymour CR20-I Receptacle Duplex 20A/125V Side Wire Ivory
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007119169
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-CR20I Brand Name Pass & Seymour by Legrand Manufacturer Part Number CR20-I Product Line Pass & Seymour Product Name 20A 125V Commercial Spec-Grade Duplex Receptacle, Side Wire, Ivory Product Type Receptacle
Color Ivory Depth 0.78" Height 2.63" Width 1.32"
Current Rating 20A Voltage Rating 125V
Limited Warranty 1-Year
Country of Origin MX Environmental Certification UL
