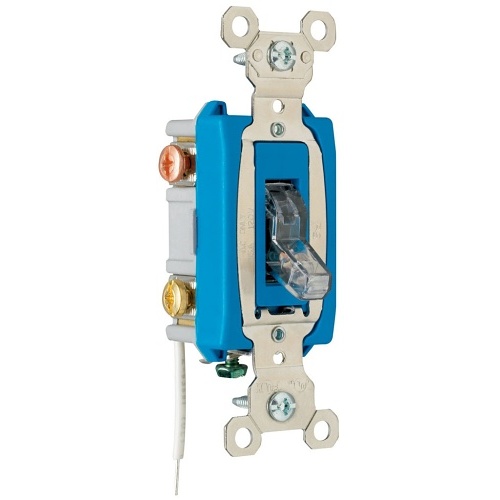

On-Q PS15AC3-CPL 15A 120V AC Back and Side Wire 3-Way Pilot Switch, Clear
PS15AC3-CPL|H4-PS15AC3CP
On-Q PS15AC3-CPL 15A 120V AC Back and Side Wire 3-Way Pilot Switch, Clear
PS15AC3-CPL|H4-PS15AC3CP
On-Q by Legrand
On-Q PS15AC3-CPL 15A 120V AC Back and Side Wire 3-Way Pilot Switch, Clear
PS15AC3-CPL | H4-PS15AC3CP
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The On-Q PS15AC3-CPL is a robust 15A 120VAC B+S wire 3W pilot switch designed for durability and efficiency. It features external screw-pressure-plate terminals accepting #14 - #10 AWG conductors, ensuring secure wiring. Its heavy-duty copper alloy contact arm reduces contact bounce, while the cam mechanism offers quick make and break actions to minimize arcing. Crafted with a glass-reinforced nylon back body and thermoplastic polycarbonate toggle, it ensures strength and quiet operation with heavy-duty bumper pads. The switch includes oversized silver alloy contacts for longevity and heat dispersion, a standard grounding terminal, and locking support to prevent body separation. Its shallow design simplifies installation. Upgrade your electrical setup with this reliable switch today!
Main Features
- External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast ''make'' and positive ''break'' to minimize arcing
- Heavy-duty bumper pads for quiet operation
- High strength thermoplastic polycarbonate toggle
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Oversized silver alloy contacts for long life and better heat dissipation
- Grounding terminal is standard
- Shallow design for ease of installation
General Information
Name: On-Q PS15AC3-CPL 15A 120V AC Back and Side Wire 3-Way Pilot Switch, Clear
Category: On-Q by Legrand, Smart Home, Smart Dimmers & Light Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-PS15AC3CP Brand Name On-Q by Legrand Manufacturer Part Number PS15AC3-CPL Product Name Industrial Extra Heavy Duty Specification Grade Switch, Lighted When On, Back and Side Wire, Clear Product Type Switch
Color Transparent Depth 1.09" Height 4.2" Width 1.25"
Current Rating 15A Input Voltage 120V AC, 277V AC Power Rating 3W
Certifications & Standards UL 20 Country of Origin MX
