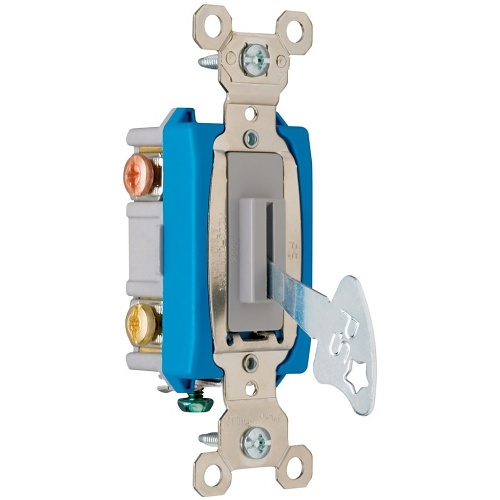

On-Q PS15AC3-L 15A 120/277V AC Back and Side Wire 3-Wire Locking Switch, Gray
PS15AC3-L|H4-PS15AC3L
On-Q PS15AC3-L 15A 120/277V AC Back and Side Wire 3-Wire Locking Switch, Gray
PS15AC3-L|H4-PS15AC3L
On-Q by Legrand
On-Q PS15AC3-L 15A 120/277V AC Back and Side Wire 3-Wire Locking Switch, Gray
PS15AC3-L | H4-PS15AC3L
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The On-Q PS15AC3-L switch by Legrand boasts a rugged build with an external screw-pressure-plate design for back and side wiring, accommodating #14 - #10 AWG copper or copper-clad conductors. Its heavy-gauge copper alloy contact arm reduces contact bounce, while the cam mechanism ensures quick and reliable operation to minimize sparking. This switch features heavy-duty bumper pads for silent use, a durable thermoplastic polycarbonate toggle, and a glass-reinforced nylon back body. Enhanced with locking support, oversized silver contacts for durability, a standard grounding terminal, and a shallow design, it ensures easy installation and lasting reliability. Upgrade your setup with this robust switch today!
Main Features
- External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast ''make'' and positive ''break'' to minimize arcing
- Heavy-duty bumper pads for quiet operation
- High strength thermoplastic polycarbonate toggle
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Oversized silver alloy contacts for long life and better heat dissipation
- Grounding terminal is standard
- Shallow design for ease of installation
General Information
Name: On-Q PS15AC3-L 15A 120/277V AC Back and Side Wire 3-Wire Locking Switch, Gray
Category: On-Q by Legrand, Smart Home, Smart Dimmers & Light Switches
UPC Code: 785007195606
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-PS15AC3L Brand Name On-Q by Legrand Manufacturer Part Number PS15AC3-L Product Name Industrial Extra Heavy Duty Specification Grade Lock Switch, Back and Side Wire, Gray Product Type Switch
Color Gray Depth 1.073" Height 3.28" Width 1.32"
Current Rating 15A Input Voltage 120V AC, 277V AC Power Rating 3W
Certifications & Standards UL 20 Country of Origin MX
