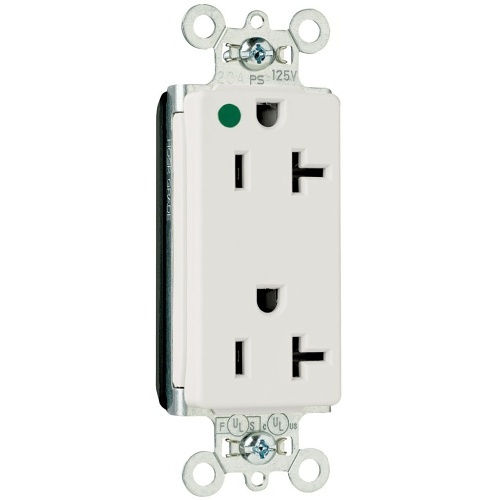

Pass & Seymour PT26362-HGW Duplex Decorator Hospital Grade 20A/125V Outlet, White
PT26362-HGW|H4-PT26362HG
Pass & Seymour PT26362-HGW Duplex Decorator Hospital Grade 20A/125V Outlet, White
PT26362-HGW|H4-PT26362HG
Pass & Seymour by Legrand
Pass & Seymour PT26362-HGW Duplex Decorator Hospital Grade 20A/125V Outlet, White
PT26362-HGW | H4-PT26362HG
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
PlugTail Decorator Hospital Grade Receptacles, 20A, 125V PlugTail devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Main Features
- 0.036 inch thick, brass, triple-wipe power contacts for lasting retention
- Plated steel wrap strap design for maximum durability and corrosion resistance
- No exposed terminals create a finger safe application before, during, and after installation
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
- Crimped and welded contacts
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails
- Auto-ground clip assures positive ground
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour PT26362-HGW Duplex Decorator Hospital Grade 20A/125V Outlet, White
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-PT26362HG Brand Name Pass & Seymour by Legrand Manufacturer Part Number PT26362-HGW Product Name PlugTail 20A 125V Hospital-Grade Decorator Duplex Receptacle, White Product Type Duplex Receptacle
Color White Depth 0.625" Height 2.75" Width 1.5"
Current Rating 20A Voltage Rating 125V
Certifications & Standards cULus UL498 Country of Origin MX Environmental Certification UL94 V2
