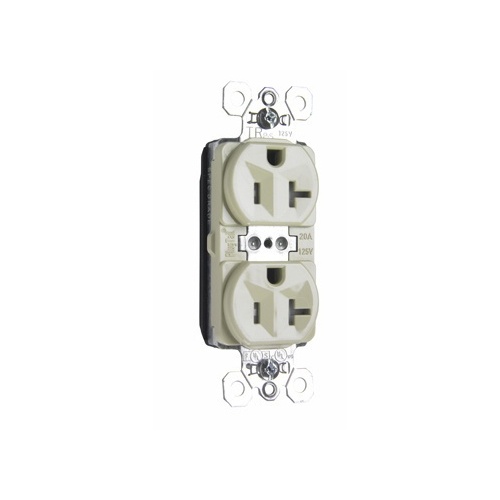

Pass & Seymour PTTR5362-I Power Outlet, Duplex Receptacle, 20A 125V, Ivory
PTTR5362-I|H4-PTTR5362I
Pass & Seymour PTTR5362-I Power Outlet, Duplex Receptacle, 20A 125V, Ivory
PTTR5362-I|H4-PTTR5362I
Pass & Seymour by Legrand
Pass & Seymour PTTR5362-I Power Outlet, Duplex Receptacle, 20A 125V, Ivory
PTTR5362-I | H4-PTTR5362I
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
PlugTail Tamper-Resistant Spec Grade Receptacles, 20A, 125V PlugTail devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Main Features
- 0.036 inch thick, brass, triple-wipe power contacts for lasting retention
- Smooth wall plate
- No exposed terminals create a finger safe application before, during, and after installation
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing
- Crimped and welded contacts
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails
- Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications
- Auto-ground clip assures positive ground
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour PTTR5362-I Power Outlet, Duplex Receptacle, 20A 125V, Ivory
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007001723
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-PTTR5362I Brand Name Pass & Seymour by Legrand Manufacturer Part Number PTTR5362-I Product Name PlugTail 20A 125V Spec-Grade Tamper-Resistant Duplex Receptacle, Ivory Product Type Duplex Receptacle
Receptacle Type Tamper-Resistant
Color Ivory Depth 0.625" Height 2.75" Width 1.5"
Current Rating 20A Voltage Rating 125V
Limited Warranty 1-Year
Certifications & Standards cULus UL498 Country of Origin MX Environmental Certification UL94 V2
