Product Overview

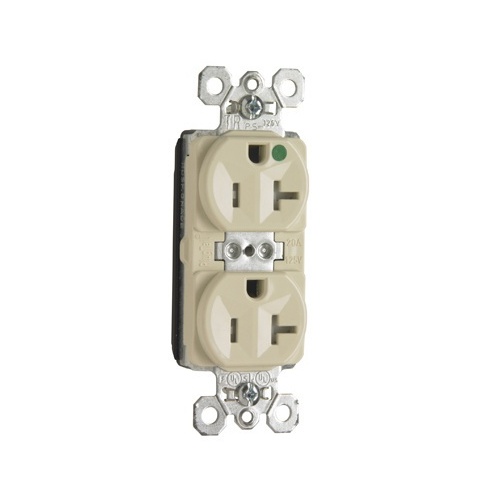

PlugTail Tamper-Resistant Hospital Grade Duplex Receptacle, Back and Side Wire, 20A, 125V. PlugTail devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Brushed finish
- Plated steel wrap strap design for maximum durability and corrosion resistance
- No exposed terminals create a finger safe application before, during, and after installation
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing
- Auto-ground clip assures positive ground
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour PTTR8300-LA Power Outlet, High-Grade Duplex Receptacle for 20A/125V AppliCATions
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-PTTR8300L Brand Name Pass & Seymour by Legrand Manufacturer Part Number PTTR8300-LA Product Name PlugTail 20A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, Light Almond Product Type Duplex Receptacle
Receptacle Type Tamper-Resistant
Color Almond Depth 0.625" Height 3.28" Width 1.5"
Current Rating 20A Voltage Rating 125V
Certifications & Standards UL 498 Country of Origin MX
