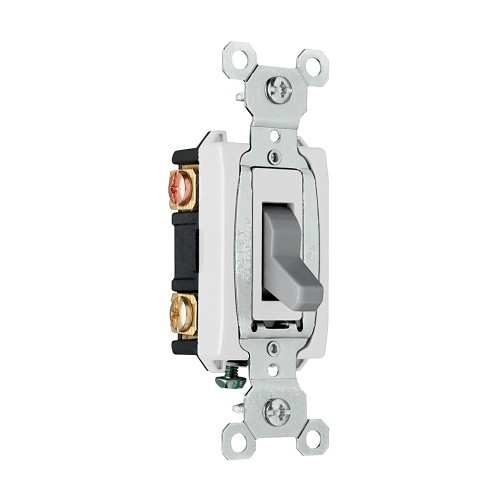

Pass & Seymour CSB15AC3-GRY 3-Way Branch and Secondary Wire Commercial Switch 15A 120/277V AC, Gray
CSB15AC3-GRY|H4-SB5AC3GRY
Pass & Seymour CSB15AC3-GRY 3-Way Branch and Secondary Wire Commercial Switch 15A 120/277V AC, Gray
CSB15AC3-GRY|H4-SB5AC3GRY
Pass & Seymour by Legrand
Pass & Seymour CSB15AC3-GRY 3-Way Branch and Secondary Wire Commercial Switch 15A 120/277V AC, Gray
CSB15AC3-GRY | H4-SB5AC3GRY
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour CSB15AC3-GRY switch by Legrand features a durable one-piece brass contact arm ensuring consistent electrical performance. Its steel strap with integrated ground is corrosion-resistant, while the polycarbonate toggle is engineered to withstand heavy use without damage. Equipped with heavy-duty bumpers for smooth operation and a glass-reinforced nylon back body with locking support to prevent separation, this switch offers reliability. It supports side wire or external screw-pressure-plate wiring for #14 to #10 AWG copper wires. The cam mechanism ensures quick connection with positive break action to reduce arcing, complemented by oversized silver alloy contacts for extended lifespan. Tri-drive screws enhance installation ease. Upgrade your setup with this robust, long-lasting switch today.
Main Features
- One-piece brass alloy contact arm for reliable electrical performance
- One-piece steel strap with integral ground is plated for corrosion resistance
- High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
- Heavy-duty toggle bumpers for smooth and quiet operation
- Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation
- Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire
- Cam designed for fast make with positive break action to minimize arcing and prolong switch life
- Oversized silver alloy contacts for longer dependable switch life
- Tri-drive terminal and mounting screws
General Information
Name: Pass & Seymour CSB15AC3-GRY 3-Way Branch and Secondary Wire Commercial Switch 15A 120/277V AC, Gray
Category: Pass & Seymour by Legrand, Smart Home, Smart Dimmers & Light Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-SB5AC3GRY Brand Name Pass & Seymour by Legrand Manufacturer Part Number CSB15AC3-GRY Product Name Hard Use Specification Grade Switch, Gray Product Type Switch
Color Gray Depth 1.073" Height 3.28" Width 1.32"
Current Rating 15A Input Voltage 120V AC, 277V AC Power Rating 3W
Certifications & Standards UL 20 Country of Origin MX
