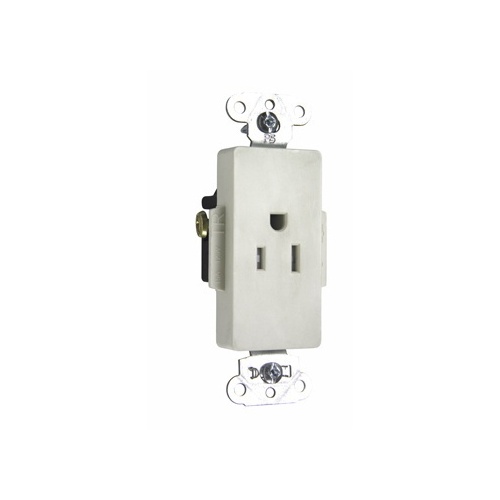

Pass & Seymour TR26261-LA Decorator Receptacle Single Tamper Resistant 15A/125V Latching
TR26261-LA|H4-TR26261LA
Pass & Seymour TR26261-LA Decorator Receptacle Single Tamper Resistant 15A/125V Latching
TR26261-LA|H4-TR26261LA
Pass & Seymour by Legrand
Pass & Seymour TR26261-LA Decorator Receptacle Single Tamper Resistant 15A/125V Latching
TR26261-LA | H4-TR26261LA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour TR26261-LA DECO REC SGL TAMPER RES 15A/1 by Legrand is designed with a dual mechanical shutter system that helps block foreign object insertion, enhancing safety. It features an auto-ground clip for a sure ground connection and a break-off line-contact tab for quick split-circuit wiring. Installation is streamlined with tri-drive brass terminal screws and back wire capability with side wire options. Additional wiring flexibility comes from two back wire holes. A corrosion-resistant plated steel strap is securely locked to resist pulling, complemented by thick brass triple-wipe power contacts. Two screws anchor the steel strap firmly where removal torque is highest. Elevate your wiring setup with this reliable, easy-to-install tamper-resistant outlet. Order now to ensure safety and efficiency in your electrical projects.
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly
- 0.032 inch thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
General Information
Name: Pass & Seymour TR26261-LA Decorator Receptacle Single Tamper Resistant 15A/125V Latching
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007004915
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR26261LA Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR26261-LA Product Name Tamper-Resistant Heavy Duty Decorator Spec Grade Single Receptacle, Back and Side Wire, 15A, 125V, Light Almond Product Type Receptacle
Receptacle Type Tamper-Resistant
Color Almond Depth 1.188" Height 2.63" Width 1.32"
Current Rating 15A Voltage Rating 125V
Certifications & Standards CSA C22.2 No. 42, UL498 Country of Origin MX Environmental Certification UL94 V2
