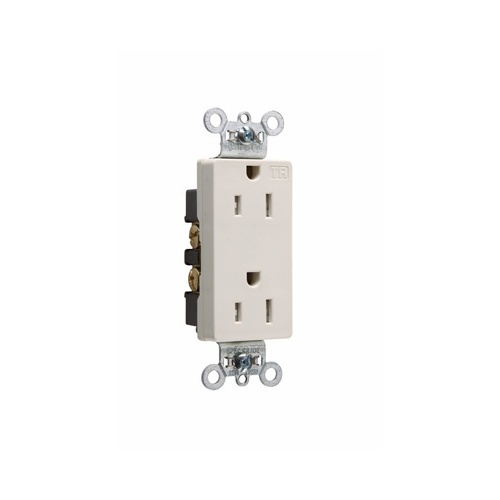

Pass & Seymour TR26262-LA Tamper Resistant Decorator Receptacle, 15A, 125V, Side and Back Wiring, Light Almond
TR26262-LA|H4-TR26262LA
Pass & Seymour TR26262-LA Tamper Resistant Decorator Receptacle, 15A, 125V, Side and Back Wiring, Light Almond
TR26262-LA|H4-TR26262LA
Pass & Seymour by Legrand
Pass & Seymour TR26262-LA Tamper Resistant Decorator Receptacle, 15A, 125V, Side and Back Wiring, Light Almond
TR26262-LA | H4-TR26262LA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour TR26262-LA is a reliable 15A 125V receptacle featuring a dual mechanical shutter system to prevent foreign object insertion. It includes an auto-ground clip for secure grounding and a break-off line-contact tab for quick split-circuit wiring. Installation is streamlined with backed-out tri-drive brass terminal screws and versatile internal screw-pressure-plate wiring options. Additional wiring flexibility is provided by two back wire holes. The corrosion-resistant plated steel strap is firmly locked in place to withstand pull forces. Durable 0.032" thick brass triple-wipe power contacts ensure lasting performance, anchored securely by two drive screws for enhanced stability. Upgrade your electrical setup with this dependable, easy-to-install receptacle for safety and convenience.
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly
- 0.032 inch thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
General Information
Name: Pass & Seymour TR26262-LA Tamper Resistant Decorator Receptacle, 15A, 125V, Side and Back Wiring, Light Almond
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007277296
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR26262LA Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR26262-LA Product Name Tamper-Resistant Heavy Duty Decorator Spec Grade Receptacles, Back and Side Wire, 15A, 125V, Light Almond Product Type Receptacle
Receptacle Type Tamper-Resistant
Color Almond Depth 0.78" Height 2.63" Width 1.32"
Current Rating 15A Voltage Rating 125V
Certifications & Standards UL 498 Country of Origin MX
