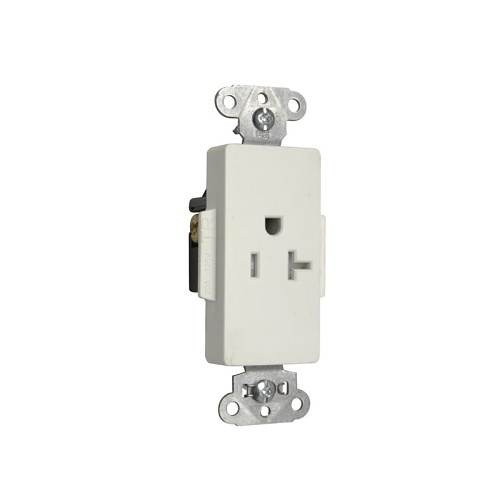

Pass & Seymour TR26361-W Decora Single Tamper-Resistant Receptacle, 20A, 125V, White
TR26361-W|H4-TR26361W
Pass & Seymour TR26361-W Decora Single Tamper-Resistant Receptacle, 20A, 125V, White
TR26361-W|H4-TR26361W
Pass & Seymour by Legrand
Pass & Seymour TR26361-W Decora Single Tamper-Resistant Receptacle, 20A, 125V, White
TR26361-W | H4-TR26361W
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour TR26361-W DECO REC SGL TAMPER RES 20A/1 outlet by Legrand features a dual mechanical shutter system that enhances safety by preventing foreign object insertion. It boasts two drive screws securing the strap to the body and face for superior durability against abrupt removal. Installation is simplified with back-out tri-drive brass terminal screws and an easily accessible break-off line-contact tab for quick split-circuit wiring. Additional wiring flexibility is provided by internal screw-pressure-plate terminals and two back wire holes. Equipped with 0.032" thick brass triple-wipe power contacts, it ensures reliable conductivity. This tamper-resistant outlet operates within a temperature range of -40°C to 60°C, with a maximum temperature rise of 30°C under heavy current load. Upgrade your electrical safety and reliability with this robust, easy-to-install solution today!
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Two drive screws anchor strap to back body and face where abrupt removal torque is greatest
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- 0.032 inch thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour TR26361-W Decora Single Tamper-Resistant Receptacle, 20A, 125V, White
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007005004
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR26361W Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR26361-W Product Name 20A 125V Spec-Grade Tamper-Resistant Decorator Duplex Receptacle, Back and Side Wire, White Product Type Duplex Receptacle
Receptacle Type Tamper-Resistant
Color White Depth 1.188" Height 2.63" Width 1.32"
Current Rating 20A Voltage Rating 125V
Certifications & Standards CSA C22.2 No. 42, UL498 Country of Origin MX
