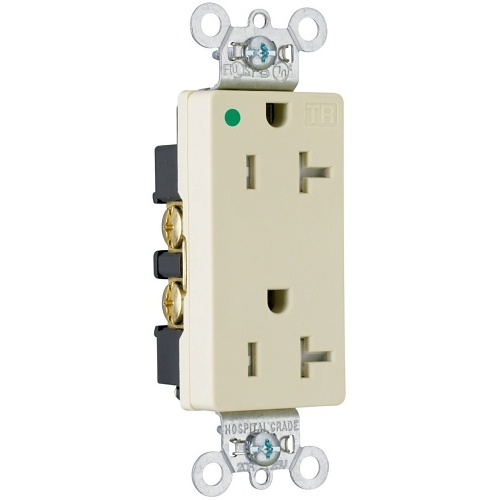

Pass & Seymour TR26362-HGI Tamper-Resistant Decora Receptacle, 20A, 125V, Hospital Grade, Ivory
TR26362-HGI|H4-TR26362HG
Pass & Seymour TR26362-HGI Tamper-Resistant Decora Receptacle, 20A, 125V, Hospital Grade, Ivory
TR26362-HGI|H4-TR26362HG
Pass & Seymour by Legrand
Pass & Seymour TR26362-HGI Tamper-Resistant Decora Receptacle, 20A, 125V, Hospital Grade, Ivory
TR26362-HGI | H4-TR26362HG
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour TR26362-HGI TR DECO Receptacle by Legrand offers superior safety with its dual mechanical shutter system that prevents foreign object insertion. It features an auto-ground clip for reliable grounding and a break-off line-contact tab for quick split-circuit wiring. Installation is streamlined thanks to backed-out tri-drive brass screws and versatile internal screw-pressure-plate connections that support both back and side wiring, along with two back wire holes for extra flexibility. Its durable design includes thick brass triple-wipe power contacts and steel strap anchoring screws for enhanced durability under stress. Rated for a maximum 30°C temperature rise after overload cycles, it operates efficiently in temperatures ranging from -40°C to 60°C. Ideal for secure, fast installation and dependable performance, this receptacle is a great choice for your electrical needs. Purchase now to ensure a safe and efficient wiring solution.
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- 0.032 inch thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour TR26362-HGI Tamper-Resistant Decora Receptacle, 20A, 125V, Hospital Grade, Ivory
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR26362HG Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR26362-HGI Product Name 20A 125V Heavy Duty Hospital-Grade Tamper-Resistant Decorator Duplex Receptacle, Back and Side Wire, Ivory Product Type Duplex Receptacle
Receptacle Type Tamper-Resistant
Color Ivory Depth 0.78" Height 2.63" Width 1.32"
Current Rating 20A Voltage Rating 125V
Certifications & Standards UL 498 Country of Origin US
