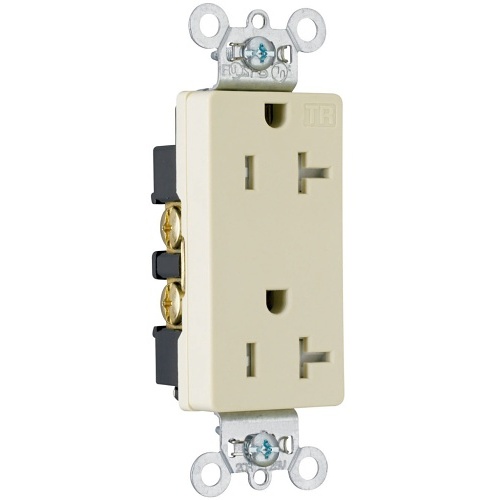

Pass & Seymour TR26362-I Decor Receptacle, 20A, 125V, Single and Double Wire
TR26362-I|H4-TR26362I
Pass & Seymour TR26362-I Decor Receptacle, 20A, 125V, Single and Double Wire
TR26362-I|H4-TR26362I
Pass & Seymour by Legrand
Pass & Seymour TR26362-I Decor Receptacle, 20A, 125V, Single and Double Wire
TR26362-I | H4-TR26362I
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Tamper-Resistant Heavy-Duty Decorator Spec Grade Receptacles, Back and Side Wire, 20A, 125V.
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- .032" thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- For covering patents, see www.legrand.us/patents
- Temperature Rise - Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current, Operating Temperature - Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour TR26362-I Decor Receptacle, 20A, 125V, Single and Double Wire
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007277333
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR26362I Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR26362-I Product Line Pass & Seymour Product Name 20A 125V Heavy Duty Spec-Grade Tamper-Resistant Decorator Duplex Receptacle, Back and Side Wire, Ivory Product Type Receptacle
Color Ivory Depth 0.78" Height 2.63" Width 1.32"
Current Rating 20A Voltage Rating 125V
Limited Warranty 1-Year
Country of Origin MX Environmental Certification UL
