Product Overview

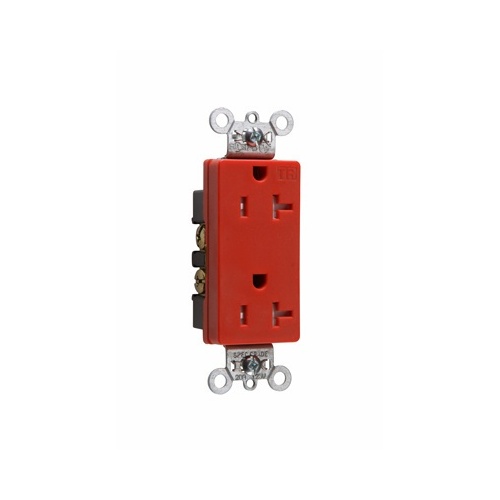

The Pass & Seymour TR26362-RED TR Deco Receptacle offers a secure and reliable electrical connection with its dual mechanical shutter system that blocks foreign objects. It features an auto-ground clip ensuring a positive ground connection and a break-off line-contact tab for quick split-circuit wiring. Installation is simplified by tri-drive brass terminal screws and versatile wiring options including back and side wire capabilities plus two back wire holes. Durable brass triple-wipe contacts and reinforced steel strap anchoring provide lasting performance. Designed to operate safely within a wide temperature range, this receptacle is an excellent choice for dependable electrical solutions. Upgrade your electrical setup today with this practical and easy-to-install receptacle.
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- 0.032 inch thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour TR26362-RED Tamper Resistant Decora Receptacle 20A 125V Side and Back Wire, Red
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR26362RE Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR26362-RED Product Name 20A 125V Heavy Duty Spec-Grade Tamper-Resistant Decorator Duplex Receptacle, Back and Side Wire, Red Product Type Duplex Receptacle
Receptacle Type Tamper-Resistant
Color Red Depth 0.78" Height 2.63" Width 1.32"
Current Rating 20A Voltage Rating 125V
Limited Warranty 1-Year
Certifications & Standards UL 498 Country of Origin MX
